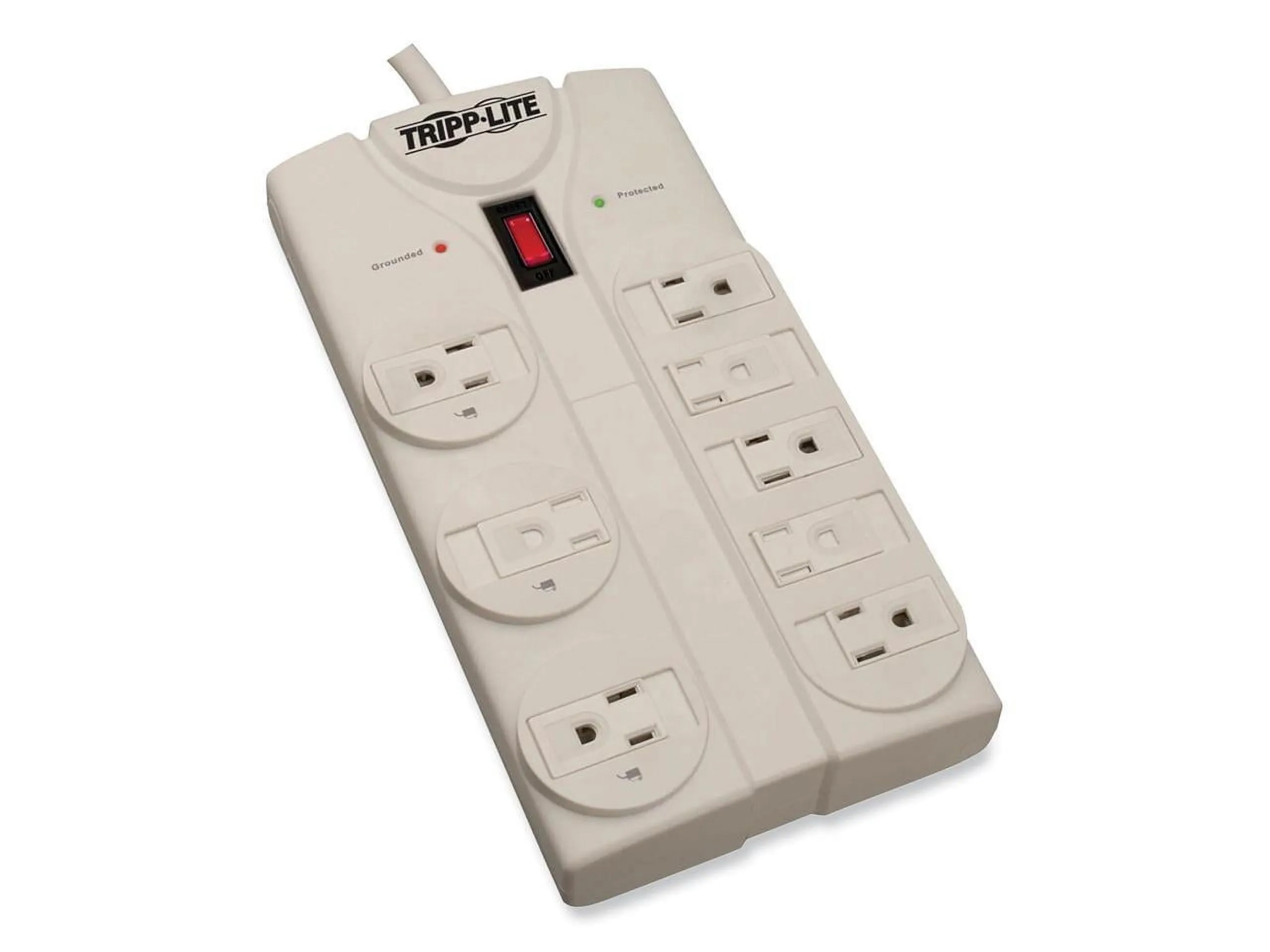

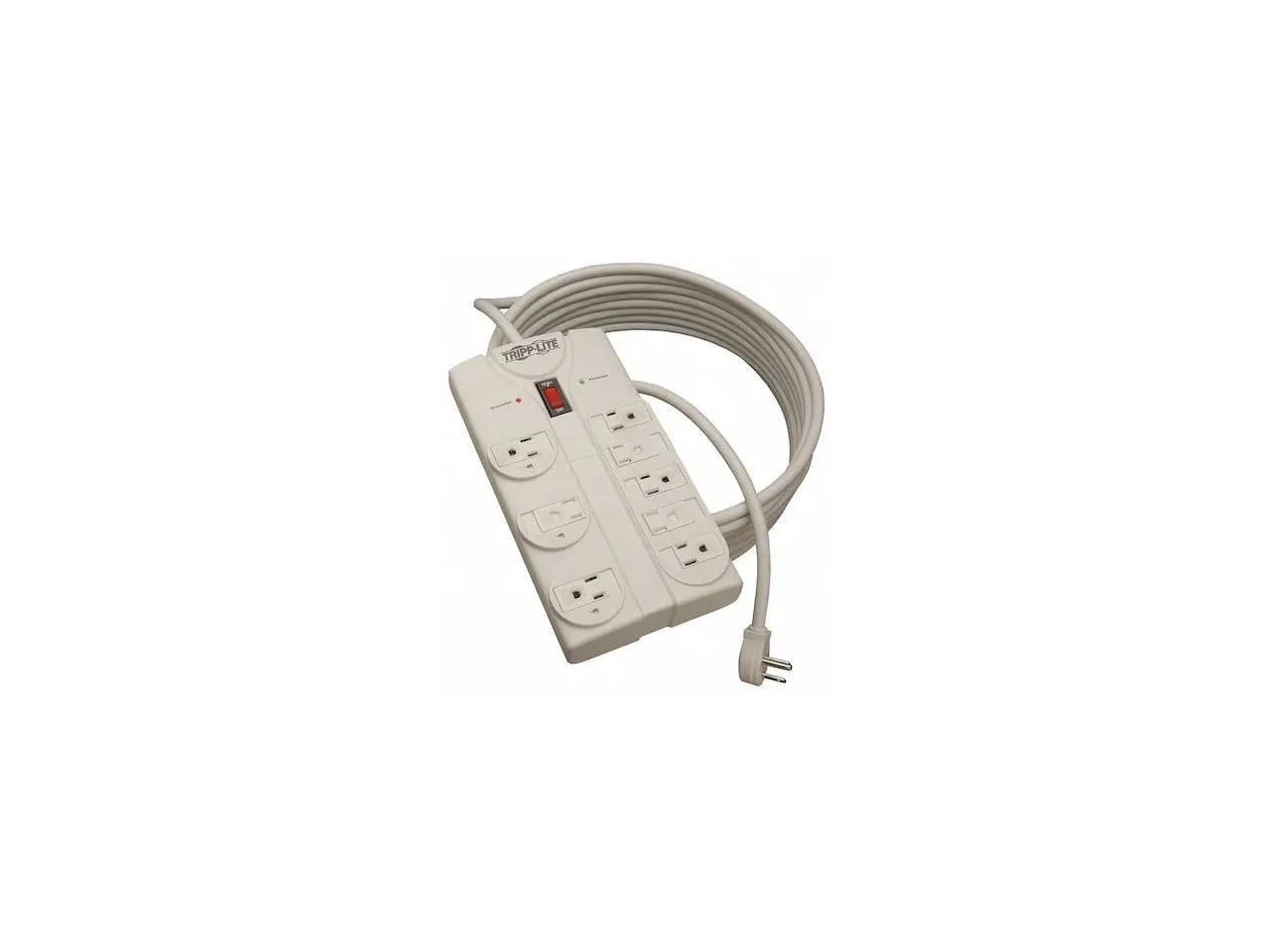

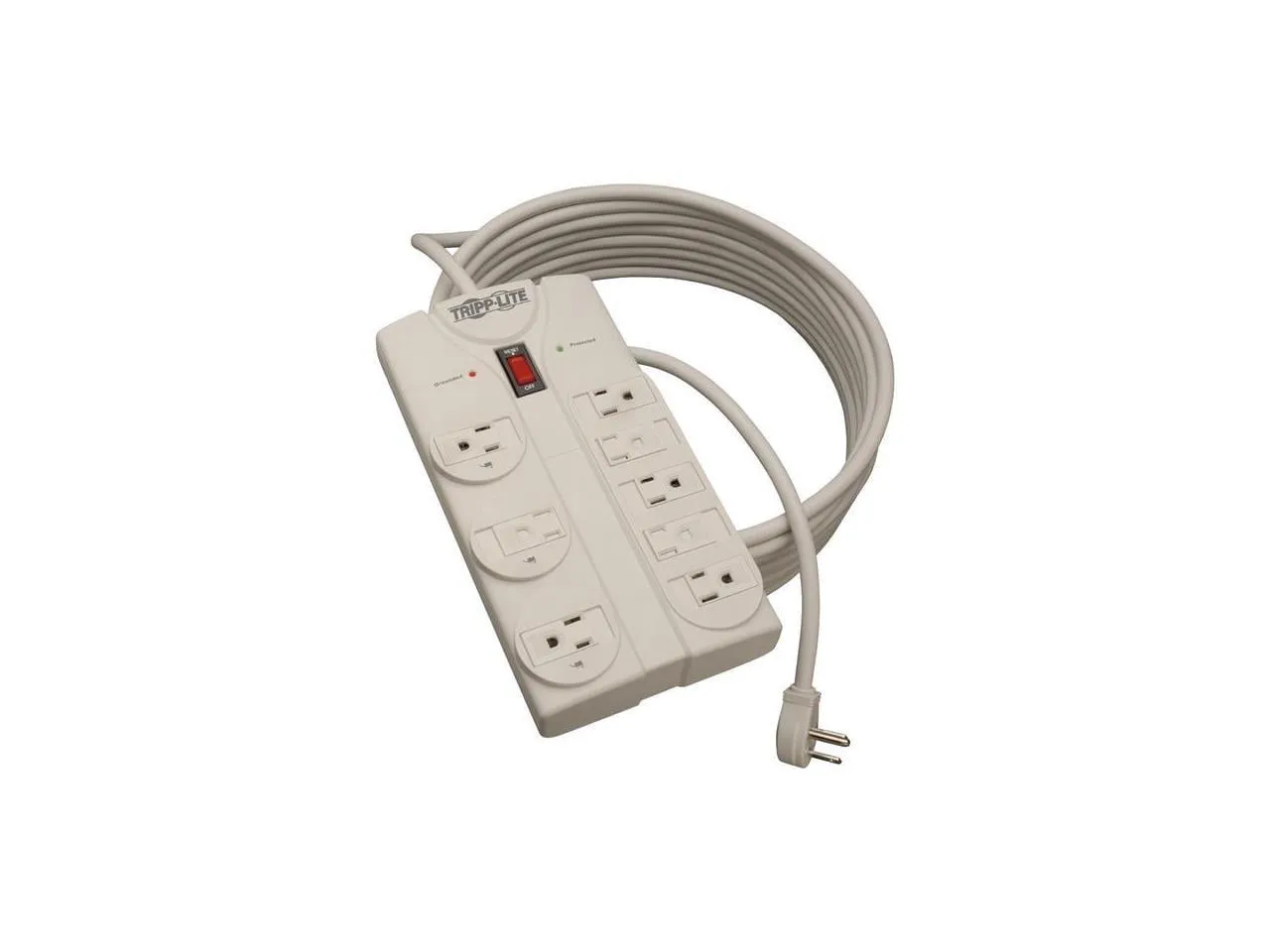

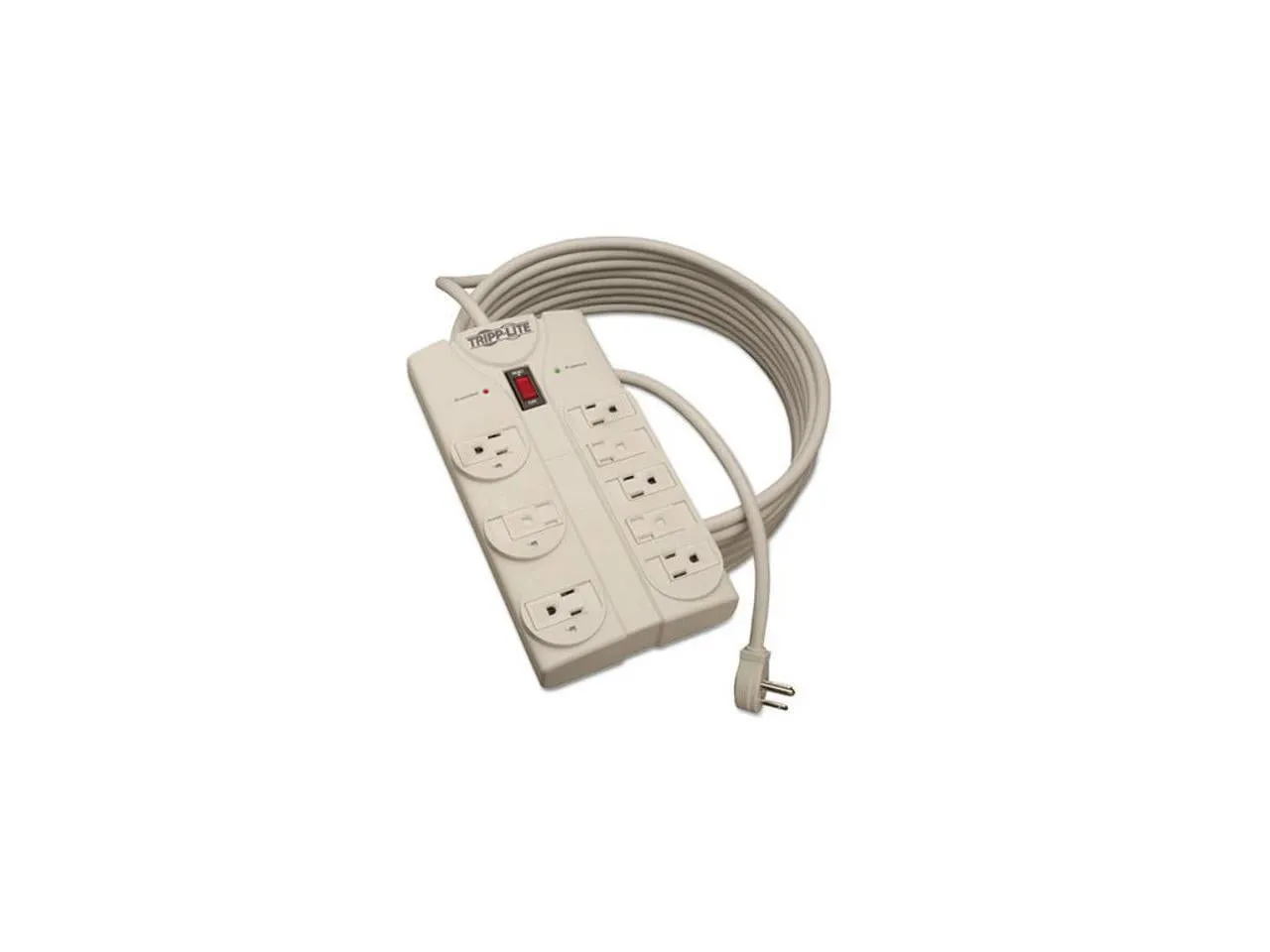

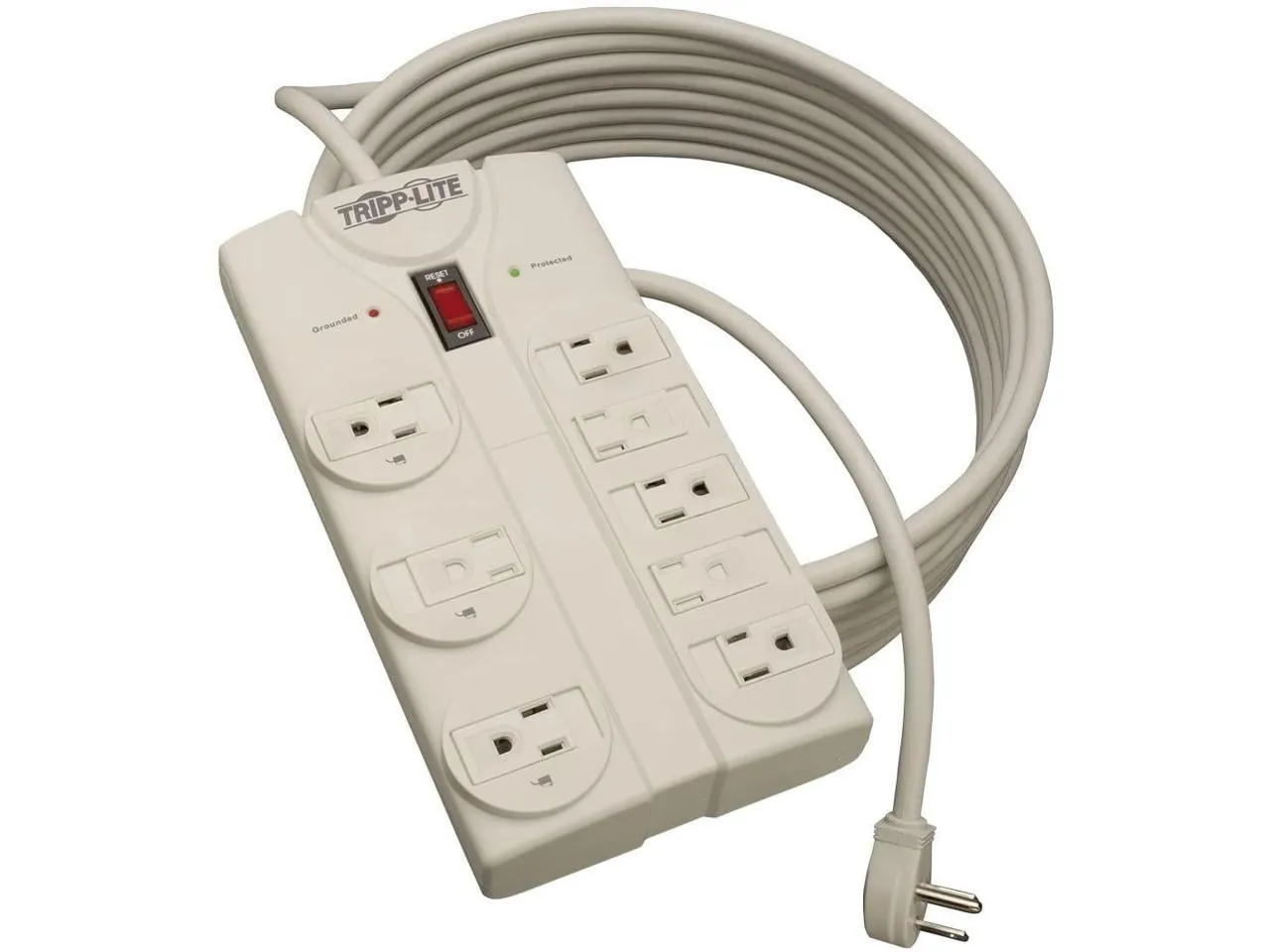

Surge suppressor offers economical AC surge suppression for protection of workstations, desktop PCs, telecom systems and more. Heavy-grade surge suppression shields your connected equipment from damage and performance problems due to the heaviest transient surges. Diagnostic LEDs warn you of wiring problems and suppressor damage. Network-grade AC suppression shields your equipment from surges and line noise. Integrated, child-safety outlet covers safely seal off unused outlets. Three designated, transformer plug outlets offer convenient protection of your desktop computer equipment and accessories.Tripp Lite Surge Protector Power Strip 120V 5-15R 8 Outlet 25' Cord 1440 Joule
OVERVIEW
Intended Application :Home/Office
OUTPUT
Frequency compatibility :50 / 60 Hz
Output watts :1800
Output volt amp capacity (amps) :15
Outlet quantity / type :8 NEMA 5-15R
Transformer accommodation :Supports 3 large transformer plug accessories without covering remaining outlets, accepts up to 6 transformers total
Outlet safety covers :Includes built-in sliding outlet safety covers
Outlet orientation :Single row of 5, plus a second row of 3 for transformer accommodation INPUT
Recommended Electrical Service :120V (110-125V)
Input connection type :NEMA 5-15P

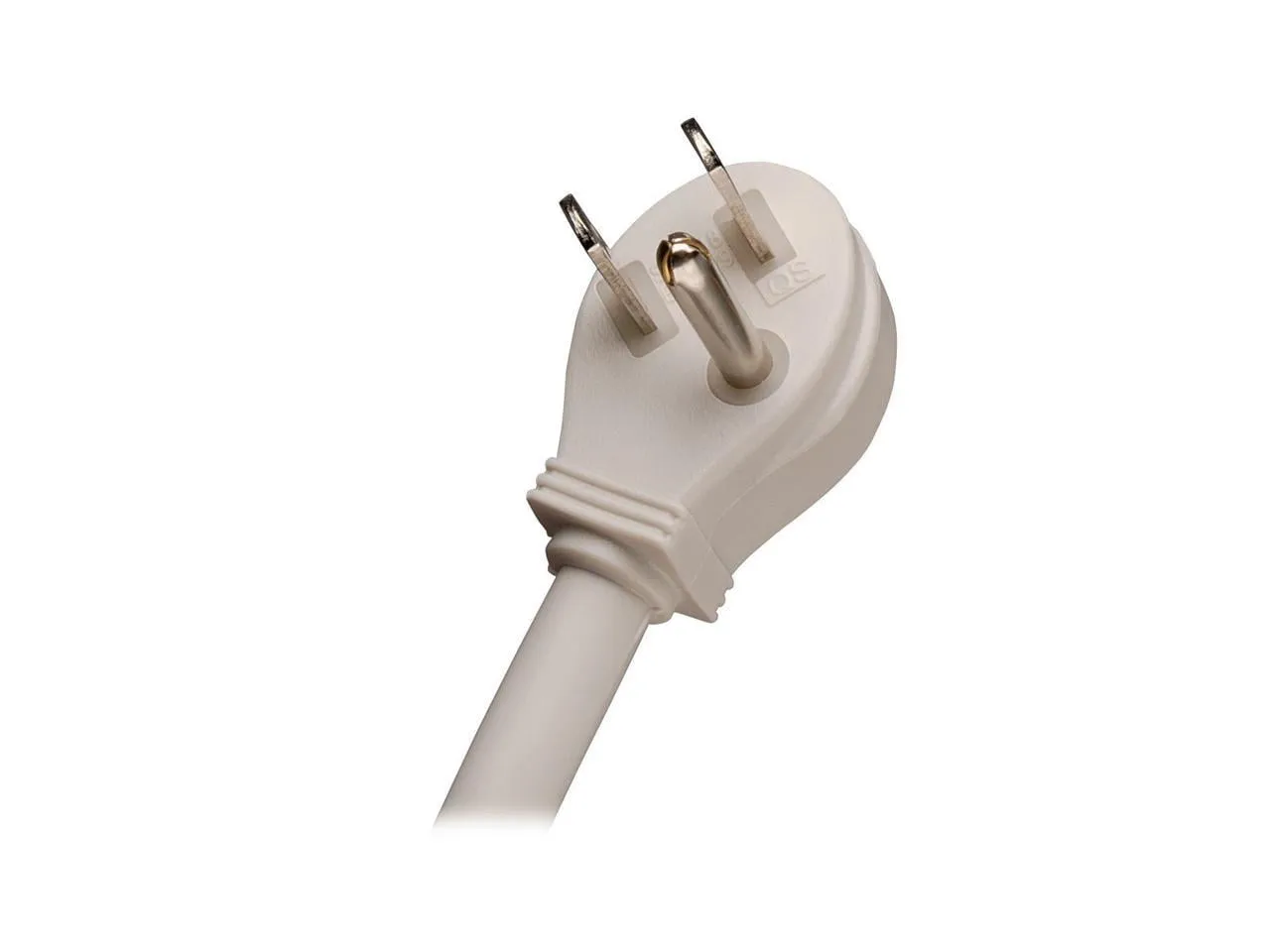

Input plug features :Space-saving right angle input plug
Input cord length (ft.) :25
Input cord gauge, type :14 gauge, SJT
Voltage compatibility (VAC) :120 LEDS ALARMS and SWITCHES
Switches :Combination AC circuit breaker and 2 position red illuminated on/off power switch
Diagnostic LEDs :Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
SURGE / NOISE SUPPRESSION
AC suppression joule rating :1440
AC suppression response time :< 1 ns
Protection modes :Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression
Clamping voltage (RMS) :150
UL1499 let through rating :330/400/400
EMI / RFI filtering :Up to 40 dB DATALINE SURGE SUPPRESSION
Cable (Coax) Protection :No
Network (Ethernet) Protection :No
PHYSICAL
Unit Dimensions (HWD/in) :4.86 x 9.55 x 1.51
Shipping Dimensions (HWD/in) :12.40 x 5.11 x 4.03
Material of construction :Plastic
Integrated keyhole mounting tabs :Keyhole mounting slots enable wall mounting
Receptacle Color :white
AC line cord color :white
Style :Strip SPECIAL FEATURES
Right-Angle Plug :Yes
CERTIFICATIONS
Additional International Approvals :RoHS
UL1449 3rd Edition (AC Suppression) :UL1449 3RD EDITION
UL1363 (Power Tap) :UL1363
cUL / CSA (Canada) :cUL
Approvals :Exceeds IEEE 587 category A and B specifications Weight:
1.75 lb
Warranty Information
Lifetime
