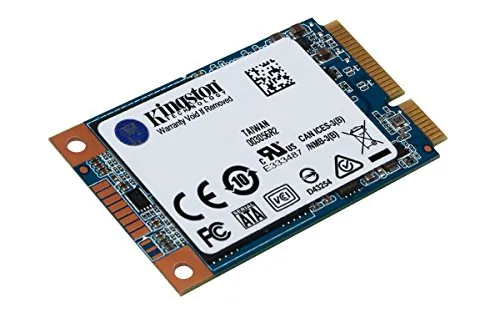

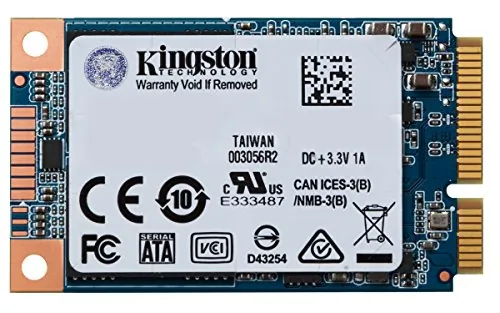

Kingston?s UV500 family of solid-state drives dramatically improves the responsiveness of your existing system with incredible boot, loading and transfer times compared to mechanical hard drives. Powered by a Marvell Dean controller combined with 3D NAND Flash for read and write speeds up to 520MB/s and 500MB/s , this SSD is 10X faster than a traditional hard drive for better performance, ultra-responsive multi-tasking and an overall faster system. UV500 provides end-to-end data protection, supports 256-bit AES hardware-based encryption and TCG Opal 2.0 security management solutions. More reliable and durable than a hard drive, UV500 is built with NAND Flash semiconductor memory. There are no moving parts, making it far less likely to fail than a mechanical hard drive. It is also cooler and quieter, and its shock and vibration resistance makes it ideal for notebooks and other mobile computing devices. UV500 is available in multiple capacities from 120GB?960GB, so you can buy one to use as a boot drive, or take advantage of the larger capacities to store videos, photos and host your most frequently used applications.
Form factor
mSATA Interface
SATA Rev. 3.0 (6Gb/s) - with backwards compatibility to SATA Rev. 2.0 (3Gb/s) Capacities 1
240GB Controller
Marvell 88SS1074 NAND
3D TLC Encryption
Encryption Support (AES 256-bit) Sequential Read/Write 2
240GB - up to 520/500MB/s Maximum 4K Read/Write 2
240GB - up to 79,000/25,000 IOPS Power Consumption
0.195W Idle
0.5W Avg
1.17W (MAX) Read
2.32 W (MAX) Write Operating temperature
0 o C to 70 o C Storage temperature
-40 o C to 85 o C Vibration operating
2.17G Peak (7-800Hz) Vibration non-operating
20G Peak (10-2000Hz) Life expectancy
1 million hours MTBF total Bytes Written (TBW) 5
240GB - 100TB Item Dimension (L inchxW inchxH inch)
3 x 4 x 1
Weight
1.00lb
Warranty Information
3 Year Manufacture Warranty
