General Information
Manufacturer:Tripp Lite
Manufacturer Part Number:SUPER7
Manufacturer Website Address:http://www.tripplite.com
Brand Name:Tripp Lite
Product Line:Protect It!

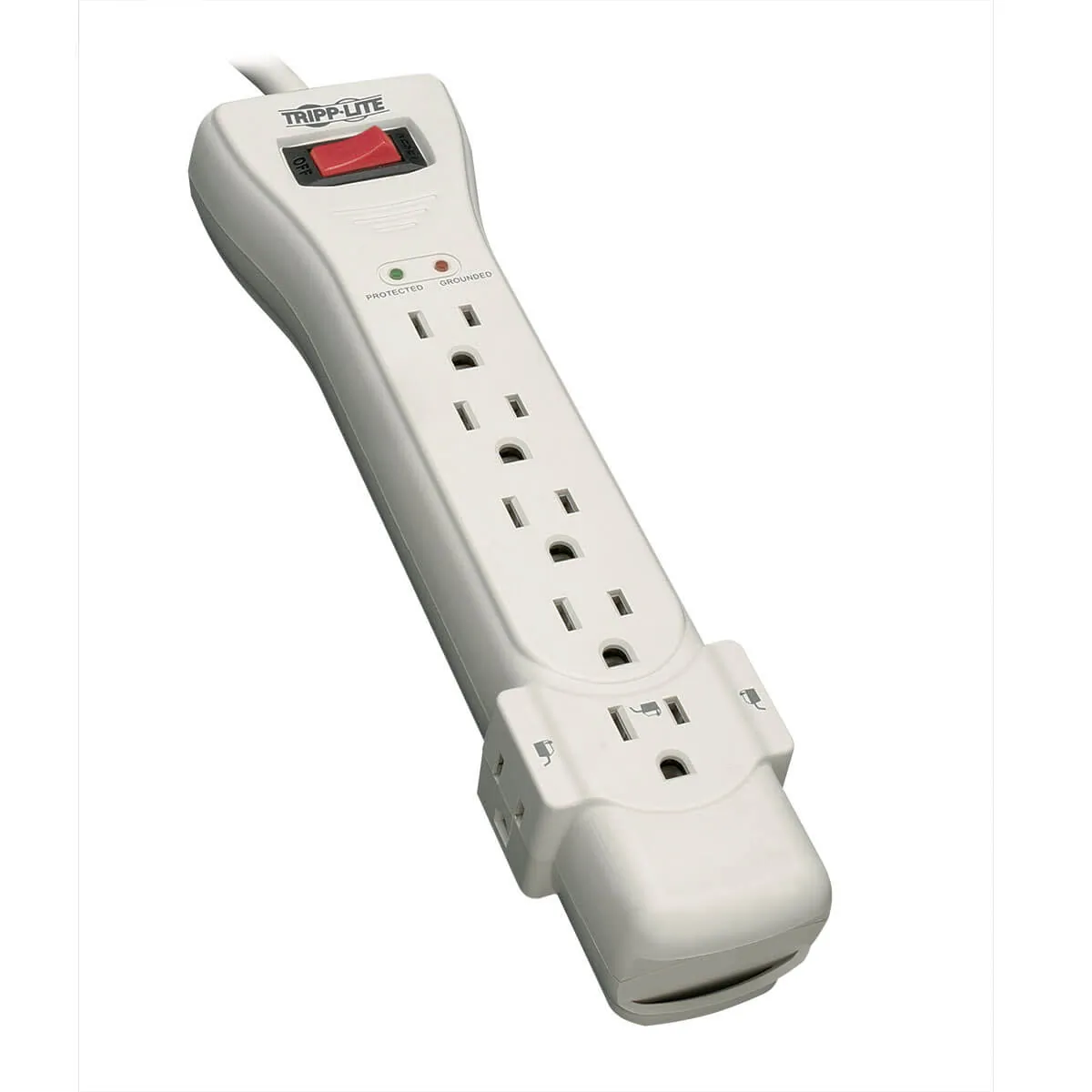

Product Name:Protect It! 7-Outlet Super Surge Protector
Marketing Information:

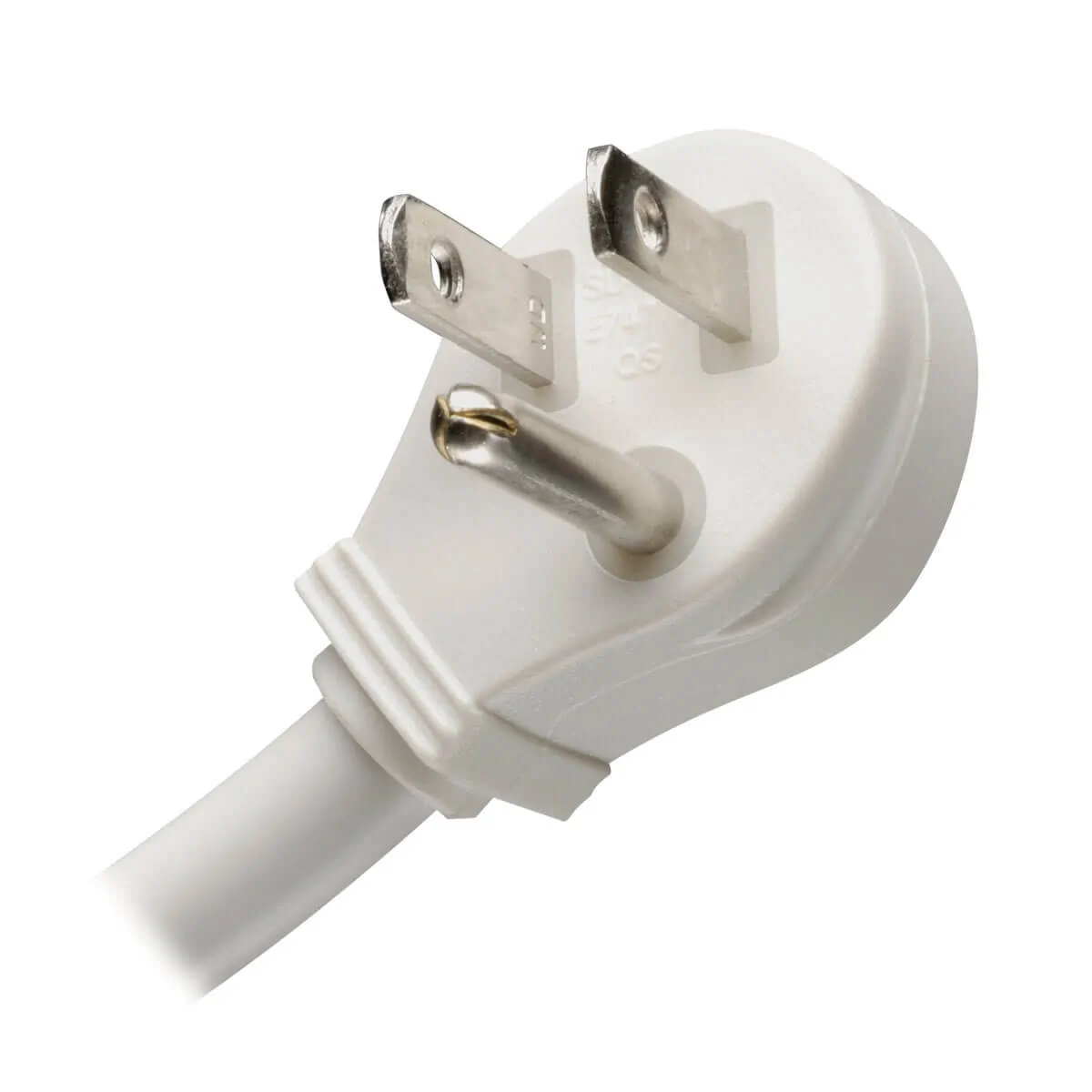

Safeguard your computer, printer, scanner, router, modem and other small home electronics against dangerous surges, spikes and line noise using this seven-outlet surge protector with right-angle plug and surge suppression rating of 2160 joules. It is recommended for any desktop, network or home application requiring AC line protection. Automatic shutoff permanently cuts power to outlets if protection circuit is incapacitated, preventing equipment damage and indicating replacement is required. 15A resettable circuit breaker foils dangerous overloads. On/off switch provides one-touch control over connected equipment. Diagnostic LEDs confirm grounding and protection status at a glance. The 7' AC power cord allows the SUPER7 to reach nearby outlets while its right-angle NEMA 5-15P plug allows furniture and equipment to be placed flush against the wall to save space in your workstation. Keyhole slots incorporated into the bottom panel provide convenient wall or desk mounting options.
Packaged Quantity:1 Each
Product Type:Surge Suppressor/Protector
Technical Information
Plug/Connector Type:NEMA 5-15P
Receptacles:7 x NEMA 5-15R
Protection Type:Surge
Power Description
Input Voltage:120 V AC
Output Voltage:120 V AC
Maximum Line Current:15 A
Power Handling:1800 VA
Surge Energy Rating:2160 J
Controls/Indicators

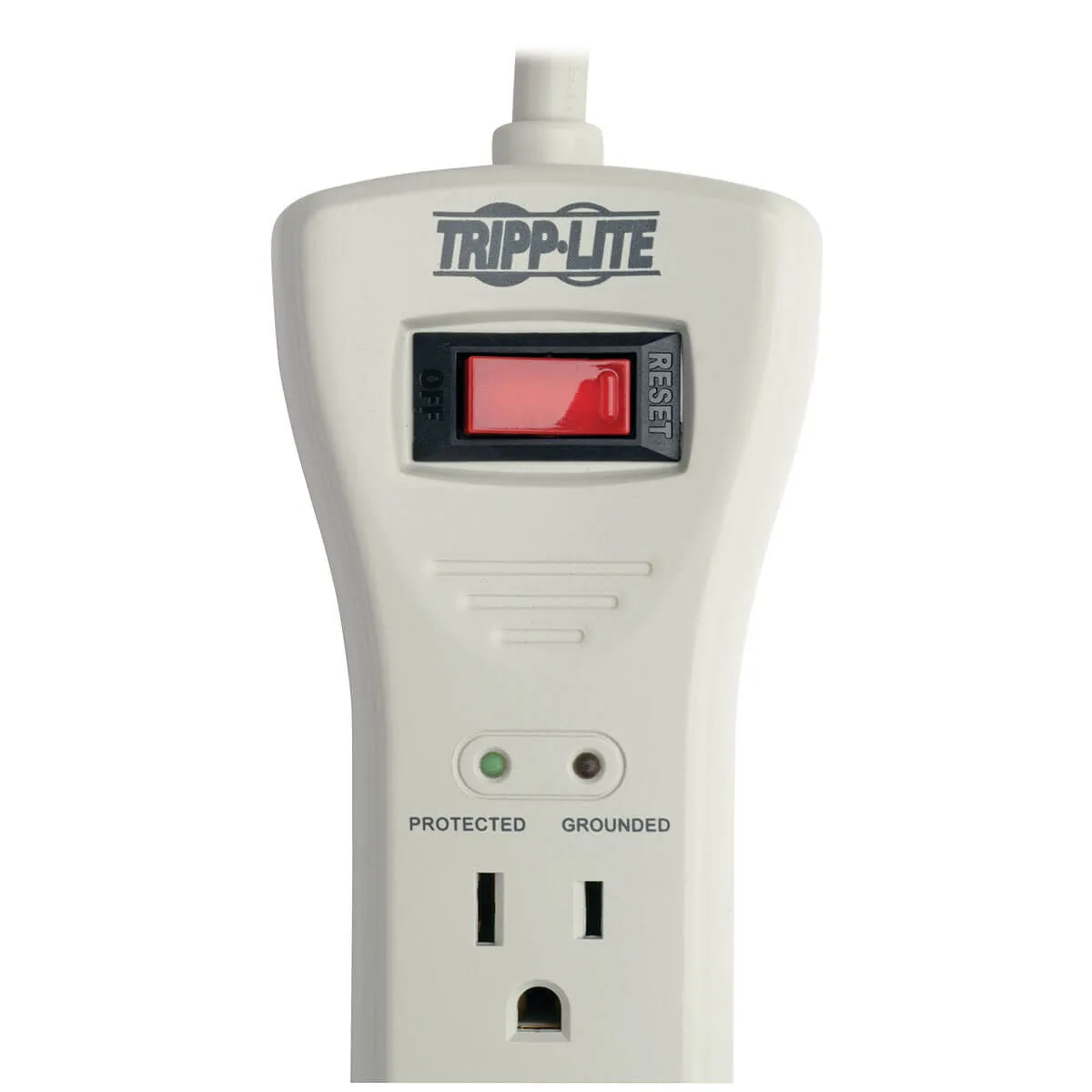

Status Indicators:Protection Present Grounded
Physical Characteristics
Product Color:Gray
Power Cord/Cable Length:7 ft
Height:1.5"
Width:2.7"
Depth:10.3"
Weight (Approximate):1.39 lb
Shipping Height:12.60"
Shipping Width:1.90"
Shipping Depth:5.90"
Shipping Weight (Approximate):1.55 lb
Miscellaneous

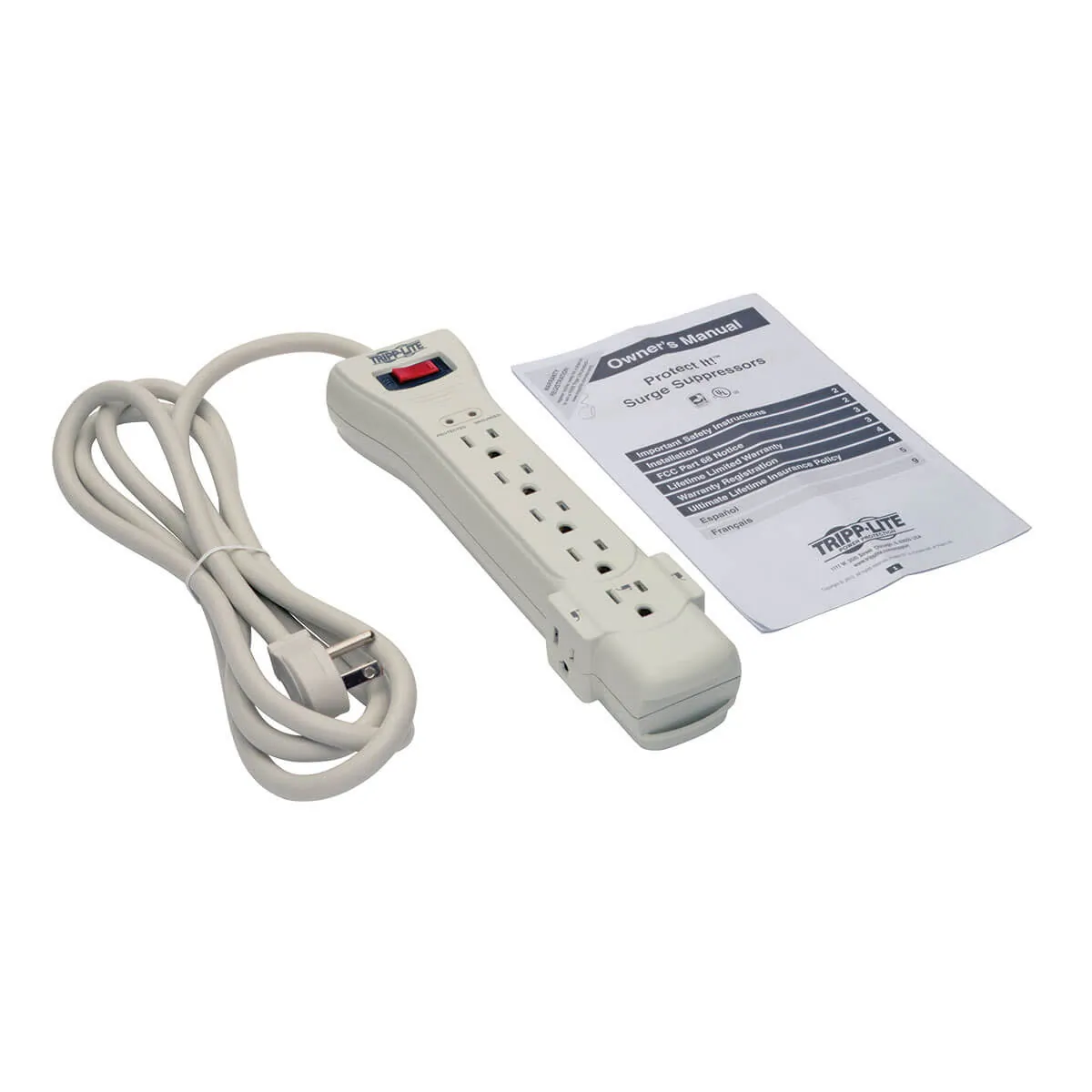

Package Contents:
- Protect It! 7-Outlet Super Surge Protector
- Instruction Manual with Warranty Information
Additional Information:

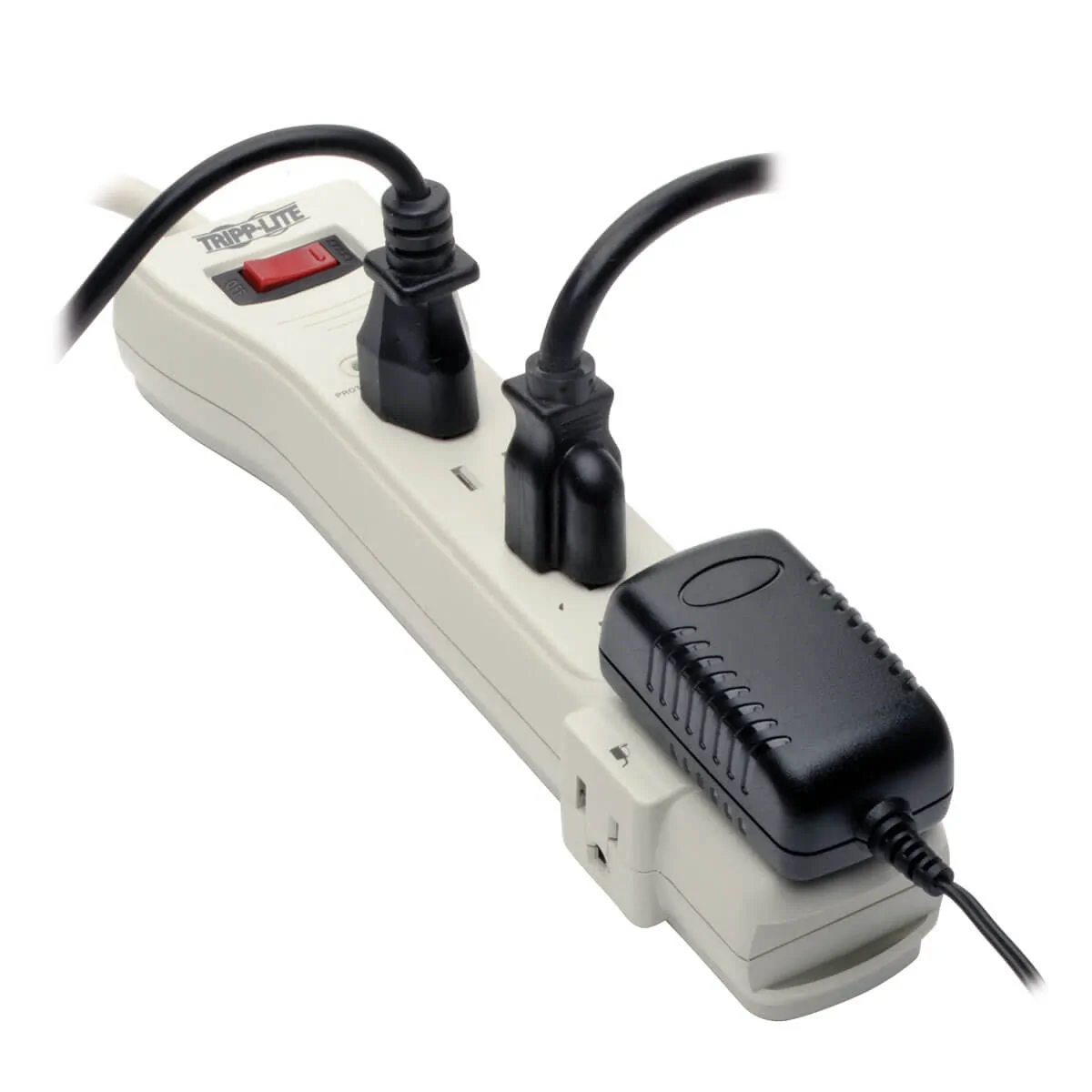

- Accommodate up to 3 transformers without blocking remaining outlets

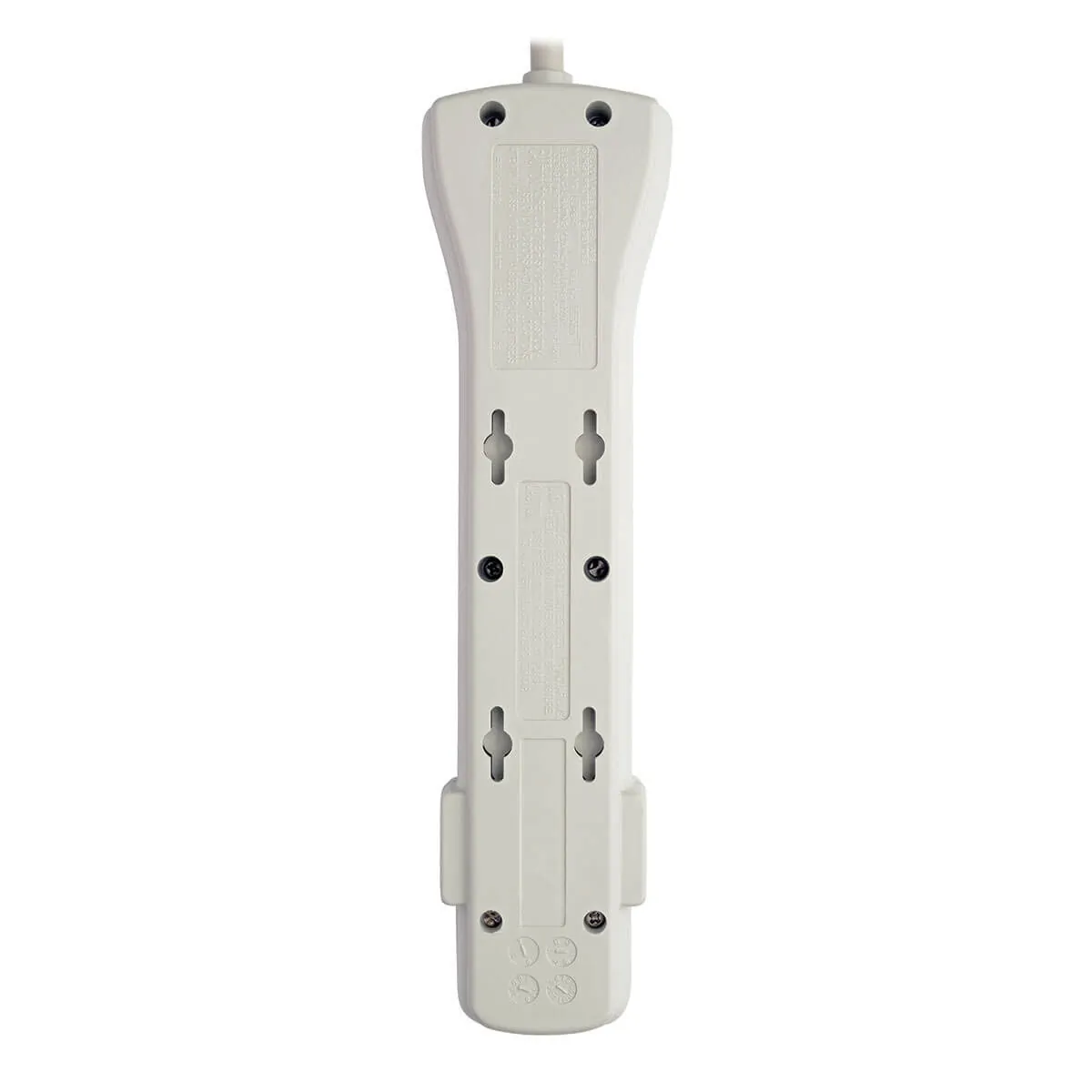

- Keyhole mounting tabs enable wall mounting
- 14 gauge, SJT Input cord
Compatibility:
- Computer
- CAD/CAM/CAE Workstations
- Network Nodes
- File Servers
- Point-of-Sale Terminals
- Audio/Visual Devices
Certifications & Standards:
- UL1449 (let through rating 330V)
- IEEE 587 Category A and B
- UL1363
- cUL
Recycled:No
Assembly Required:No
Environmentally Friendly:Yes
Country of Origin:China
Warranty
Limited Warranty:5 Year Lifetime
