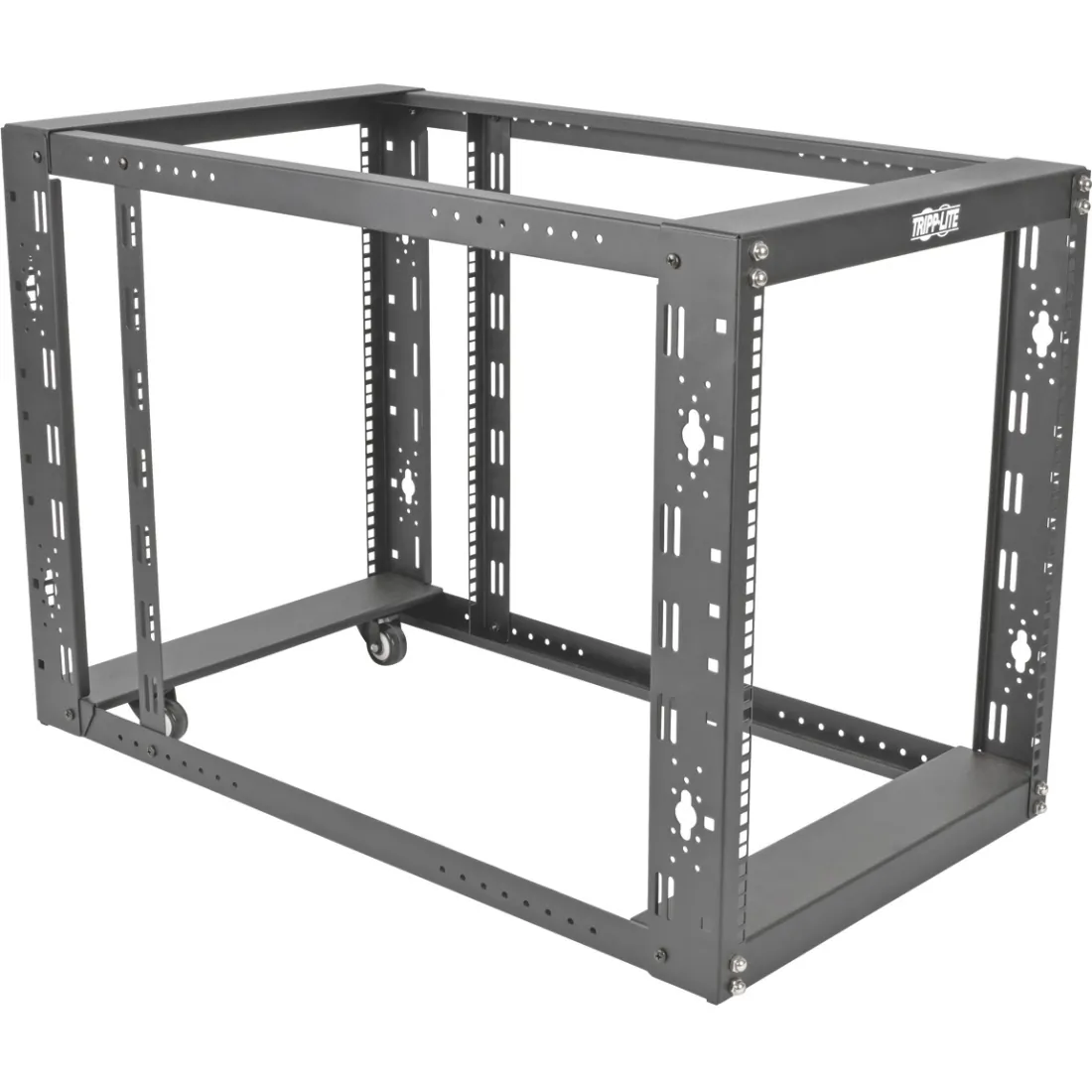

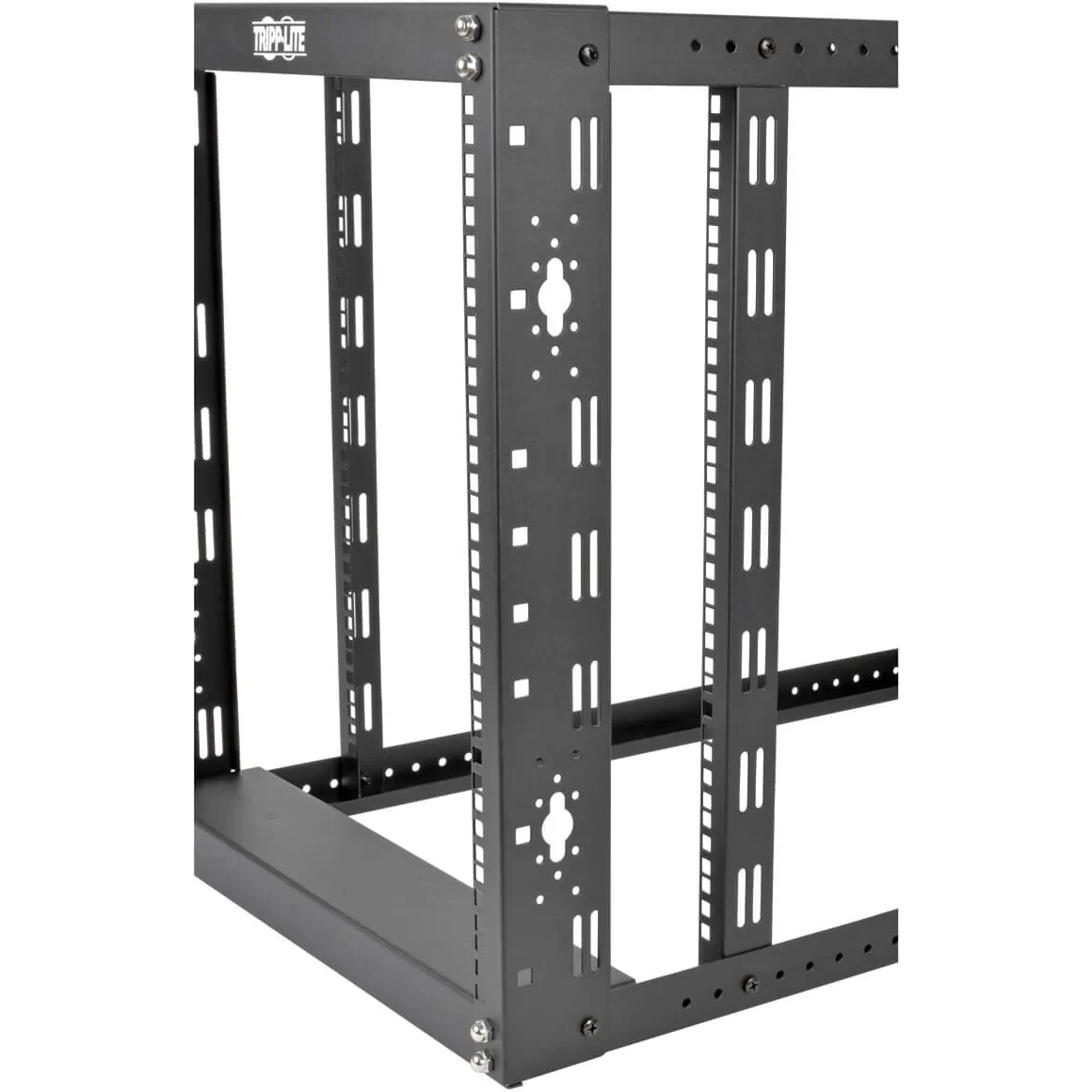

General InformationThe SmartRack 12U Standard-Depth 4-Post Open Frame Rack provides an economical rack-mount solution for small offices, retail locations and other secure IT locations with limited floor space where you need equipment to be organized and easy to access. It's ideal for mounting network switches, routers, patch panels, audio/video components and other EIA-standard 19-inch rack equipment up to 36 inches deep.Constructed from heavy-duty steel with a durable black powder-coated finish, the SR12UBEXPNDKD has a maximum load capacity of 1,000 pounds. Stashed away under a counter, on a workbench or in a corner, this rack saves precious space and allows you fast, easy access at your immediate workspace for organizing, installing and servicing equipment and cabling. The open design allows unobstructed airflow to help keep components cool and performing at their peak.The self-squaring SR12UBEXPNDKD assembles using the included hardware. Built-in casters allow you to roll the rack into place. The vertical mounting rails have square, numbered holes and optional cable management hooks for securing equipment to the steel frame. Only user-supplied standard hand tools are required for setup. Toolless button holes accept 0U vertical installation of PDUs and cable managers.Technical InformationApplication/Usage: Patch PanelApplication/Usage: A/V EquipmentApplication/Usage: ServerPhysical CharacteristicsColor: Black Powder CoatMaterial: SteelMaximum Weight Capacity: 1000 lbStatic/Stationary Weight Capacity: 1000 lbHeight: 25.6"Width: 20.4"Depth: 35.9"Weight (Approximate): 45 lbRack Height: 12URack Width: 19"Rack Depth: 36"MiscellaneousPackage Contents: 4 x Vertical mounting rails 4 x Side brackets 2 x Base brackets with built-in casters 2 x Top brackets 2 x Adjustable side support/mounting rails 12 x M6 x 12 mm screws 16 x M8 screws 20 x M6 cage nuts 20 x PVC cup washers 20 x M6 screws 10 x Cable management hooks 10 x Hook mounting screws Owner's Manual Assembly Required: YesEnvironmentally Friendly: YesEnvironmental Certification: RoHSWarrantyLimited Warranty: 5 Year
PHYSICAL
Rack Height (U Spaces) : 12
Color : Black CERTIFICATIONS
Approvals : EIA-310-D, IEC 60297-3-100, RoHS Item Dimension (L inchxW inchxH inch)
4 x 9 x 43
Weight
55.00 lb
Warranty Information
5-year limited warranty
