OVERVIEW
PDU Type
Switched
OUTPUT
Frequency Compatibility
50 / 60 Hz
Output Capacity Details
2.03kW (127V), 1.92kW (120V), 1.6kW (100V) / 20A total capacity (Agency de-rated to 16A), 16A max per outlet
Output Receptacles
(24) 5-15/20R
Output Nominal Voltage
100, 120, 127
Overload Protection
n/a
Customized Load Management Receptacles
Each outlet is individually controllable via remote interface
INPUT
PDU Input Voltage
100, 120, 127
Recommended Electrical Service
20A 120V
Maximum Input Amps
20
Maximum Input Amps Details
Agency de-rated to 16A continuous
PDU Plug Type
NEMA 5-20P, NEMA L5-20P
Input Phase
Single-Phase
Input Cord Length (m)
3.05
USER INTERFACE, ALERTS and CONTROLS
Front Panel LCD Display

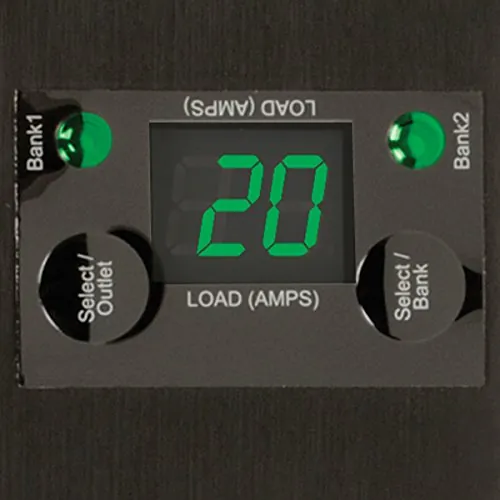

Digital display reports load level in amps for LOAD BANK 1 (Outlets 1-12), LOAD BANK 2 (Outlets 13-24), LOAD BANKS 1 and 2 COMBINED (Outlets 1-24) and each individual output receptacle, Digital display can also be used to scroll the configured IP address
Front Panel LEDs
BANK 1 and BANK 2 LEDs verify which load bank the digital current display is reporting (Bank 1, Bank 2 or Banks 1 and 2 Combined), BANK 1 or BANK 2 LED will flash when the digital display is reporting output current for one of the outlets in that load bank, 24 additional LEDs, one near each output receptacle, will light continuously to verify power on/off status and flash to indicate that the digital display is reporting output current for just that individual receptacle. LX Platform Interface: Network Link/Activity Status LED (Yellow), Network Speed LED (Green) LX Platform status LED (Green)
Switches
SELECT OUTLET and SELECT BANK switches advance the LCD screen and associated LED to display power consumption for individual output receptacles and output load banks, Press and hold the SELECT BANK button for 4 seconds to rotate the digital display 90 degrees for overhead power input, Press and hold the SELECT OUTLET button for 4 seconds to scroll the configured IP address. LX Platform Interface: Recessed reset switch for interface reboot and factory reset
Current Measurement Accuracy (Amps)
+/-1%
Voltage Measurement Accuracy (Volts)
+/-1%
Power Measurement Accuracy (Watts)
+/-1%
PHYSICAL
Form Factors Supported

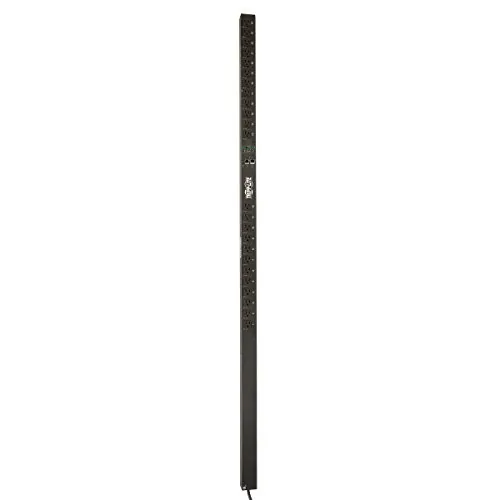

0U vertical rackmount, includes rackmount brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor
Vertical (0U)
ENVIRONMENTAL
Storage Temperature Range
-30oC to +60oC (-22oF to +140oF)
Relative Humidity
5 to 95% non-condensing
Operating Elevation (ft.)
0-10,000
Operating Elevation (m)
0-3000
COMMUNICATIONS
Network Monitoring Port

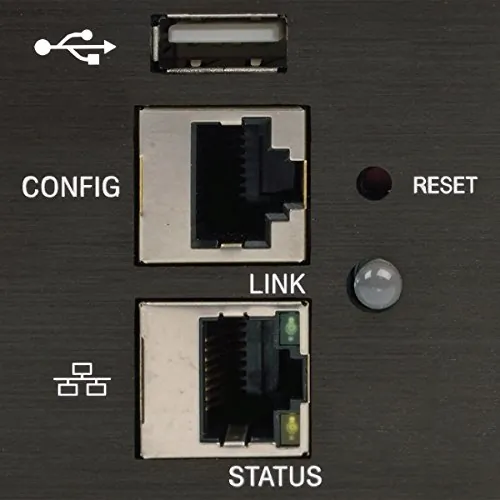

RJ45 Network port, RJ45 Config/Console Access port, USB A port supports a variety of Envirosense2 environmental and control modules. See Accessories>Management Hardware section for more information about these modules.
SNMP Compatibility
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
CERTIFICATIONS
Certifications
Tested to UL60950-1: 2007 R12.11 (USA), CAN/CSA-C22.2 NO. 60950-1-07+A1: 2011(Canada), FCC CLASS A PART 15 (Emissions), NOM (Mexico), RoHS compliant, TAA Compliant
Item Dimension (L"xW"xH")
5 x 7 x 76
Weight
20.00 LB
Warranty Information
2-year limited warranty
