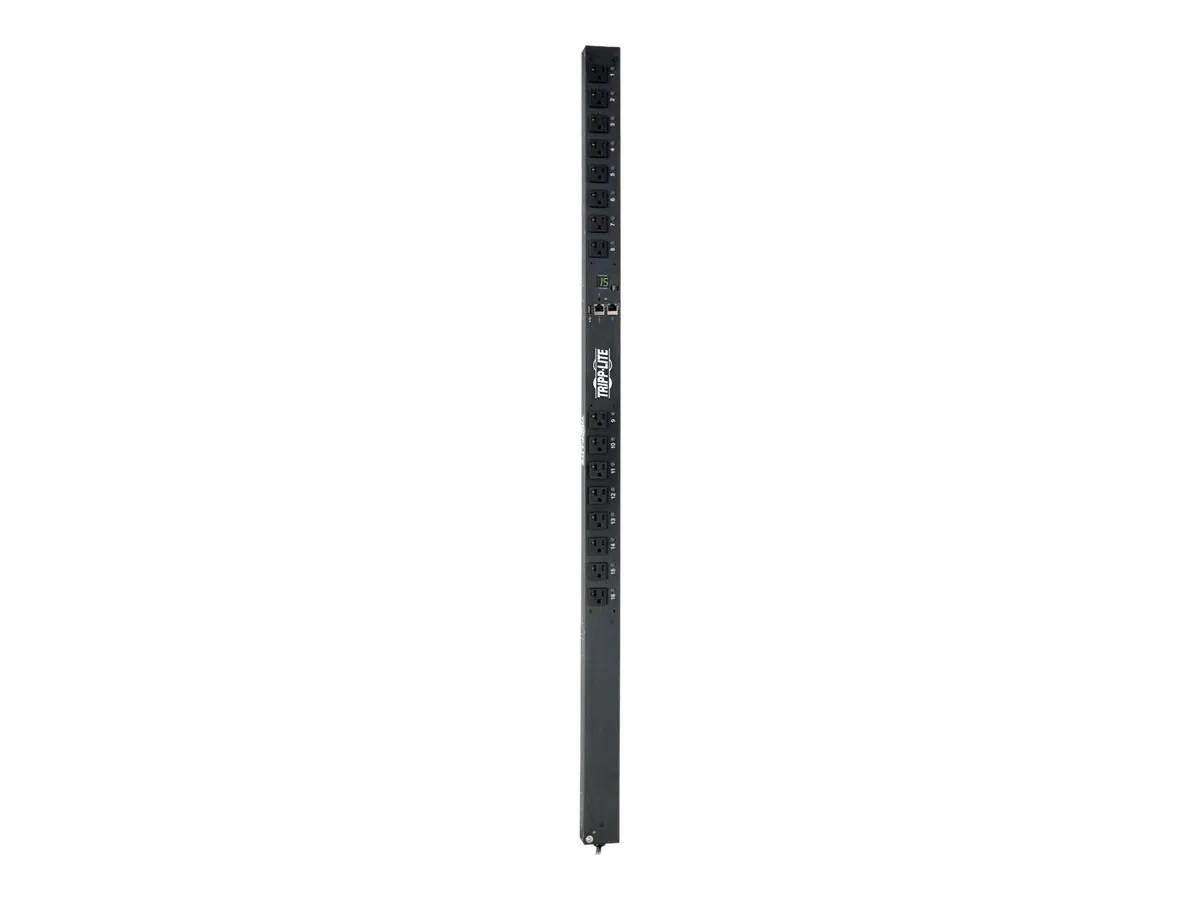

The PDUMV15NETLX 1.4kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for IT and industrial applications, the vertical PDU features 16 switched NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP. A digital ammeter allows you to monitor the total load in real time to ensure it remains well below maximum capacity with no danger of overload. The vertical PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

PDU Type
Switched
OUTPUT
- Output Capacity Details:
1.52kW (127V), 1.44kW (120V), 1.2kW (100V) / 15A total capacity (Agency de-rated to 12A), 12A max per outlet
- Frequency Compatibility
50 / 60 Hz
- Output Receptacles:
(16) 5-15R
- Output Nominal Voltage:
100, 120, 127
- Overload Protection:
n/a
- Customized Load Management Receptacles:
16 individually switched output receptacles
INPUT
- PDU Input Voltage:
100, 120, 127
- Recommended Electrical Service:
15A 120V
- Maximum Input Amps:
15
- Maximum Input Amps Details:
Agency de-rated to 12A continuous
- PDU Plug Type:
NEMA 5-15P
- Input Cord Length (ft.):
10
- Input Cord Length (m):
3.05
- Input Phase:
Single-Phase
USER INTERFACE, ALERTS and CONTROLS

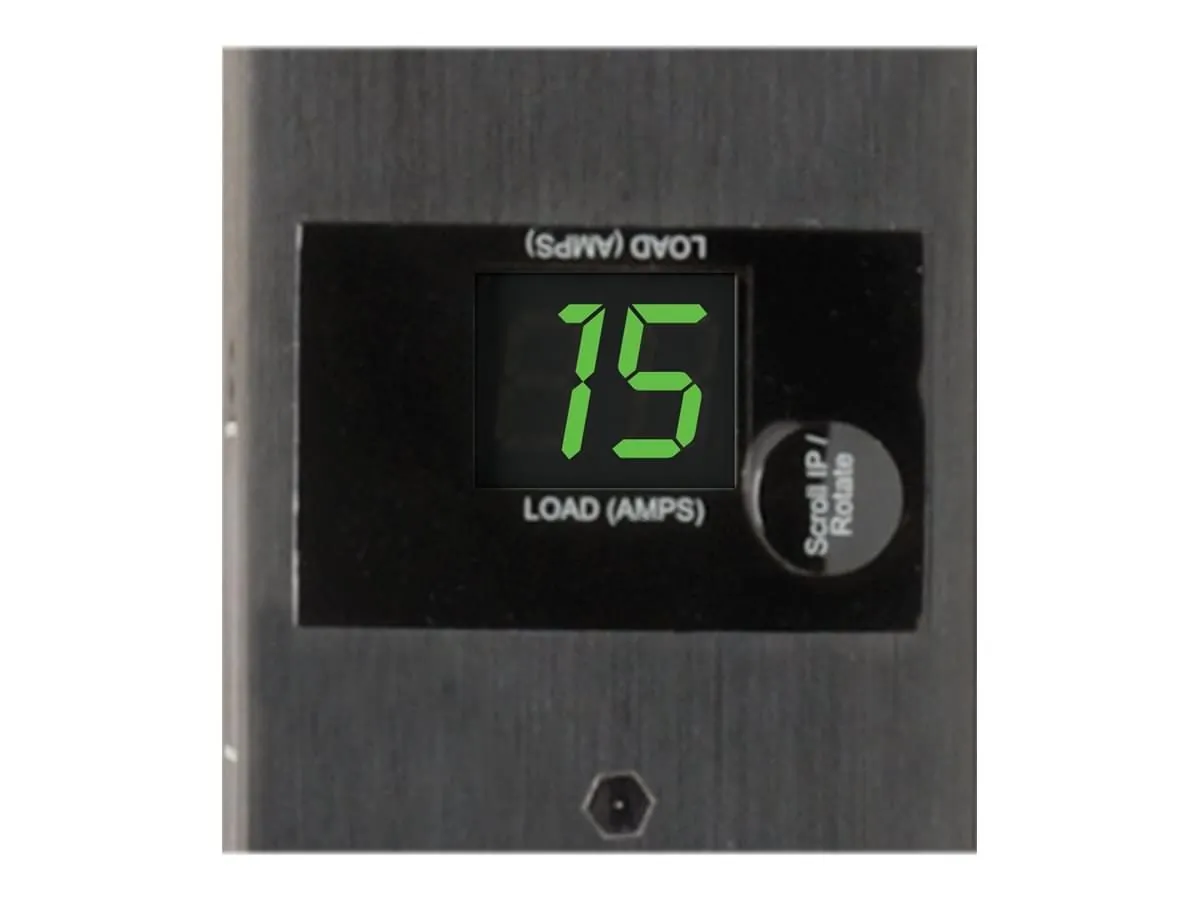

- Front Panel LCD Display:
Digital display reports total PDU output current in amps
- Front Panel LEDs:
16 LEDs display power on-off status for each output receptacle
- Switches:
Pushbutton control supports 180 degree Display Rotation and Scroll IP address functions
PHYSICAL
- Form Factors Supported:
0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
- PDU Form Factor:
Vertical (0U)
ENVIRONMENTAL
- Storage Temperature Range:
5 to 140F (-15 to 60C)
- Relative Humidity:
5-95% non-condensing
- Operating Elevation (ft.):
0-10,000
- Operating Elevation (m):
0-3000
COMMUNICATIONS
- SNMP Compatibility:
Pre-installed LX platform interface provides remote monitoring via Java-free HTML5 web interface, telnet, SSH and SNMP management systems
CERTIFICATIONS
- Certifications:
Tested to UL60950-1: 2007 (USA), CAN/CSA-C22.2 NO. 60950-1-07 (Canada), FCC Class A Part 15 (Emissions), NOM (Mexico), RoHS Compliant, TAA Compliant
Item Dimension (L inchxW inchxH inch)
52 x 6 x 4
Weight
9.00lb
Warranty Information
2 years
