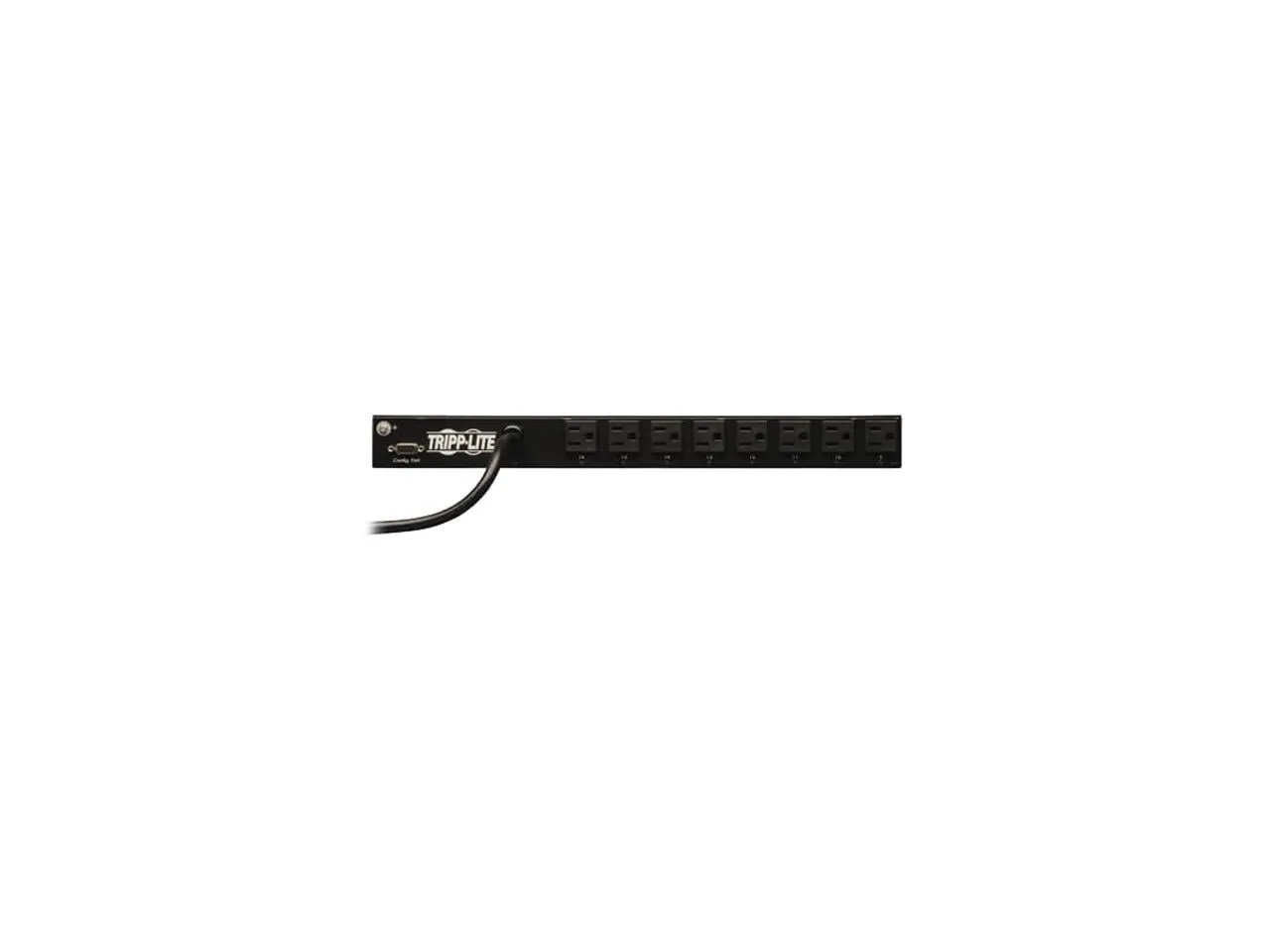

With the Tripp Lite PDUMH15NET, you can support a 15A maximum capacity at 120V. Its unique design allows for simple storage and includes an attached 5-15P input cordset for additional convenience. With 16 outlets to choose from, the Tripp Lite switched PDU gives you more options to work with while also helping to reduce downtime.

Model Type
Switched

PDU Type
Switched

OUTPUT
Frequency compatibility:50 / 60 Hz
Output nominal voltage:120V
Overload protection:n/a
Outlet quantity / type:16 5-15R
Customized load management receptacles:Each outlet is individually controllable via remote interface INPUT
PDU Input Voltage:100 120 127
Recommended :Electrical Service:120V
Maximum Input Amps (A):15
Input connection type:Attached 5-15P input plug
Plug Type:NEMA 5-15P (15A 120V)
PDU Plug Type:NEMA 5-15P
Input cord length (ft.):10
Input cord length (m):3
Voltage compatibility (VAC):120
Phase:Single-Phase LEDS ALARMS and SWITCHES
Switches:n/a
Front panel LEDs:16 power availability LEDs confirm power off/on status for each built-in outlet
Style:Vertical Rackmount
Form factors supported:0U vertical rackmount. Includes mounting brackets. Supports toolless mounting in button-mount compatible racks
PDU Form Factor:Vertical (0U) COMMUNICATIONS
SNMP compatibility:Yes, pre-installed SNMPWEBCARD provides remote monitoring via web, telnet, and SNMP management systems. Remote management gives user ability to turn connected loads on or off individually

CERTIFICATIONS
Certifications:Tested to UL 60950-1 (USA, Canada), Class A (Emissions), NOM (Mexico), RoHS compliant Item Dimension (L"xW"xH"):
21.5 x 23.5 x 5.5

Weight:
16.74 lb

Warranty Information:
2 Years
