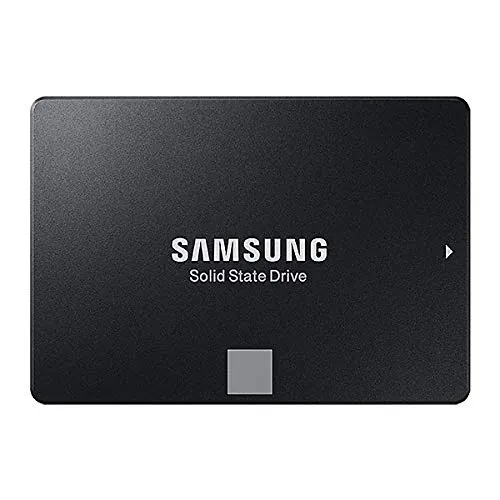

The newest edition to the world’s best-selling* SATA SSD series, the Samsung 860 EVO. Specially designed for mainstream PCs and laptops, with the latest V-NAND and a robust algorithm-based controller, this fast and reliable SSD comes in a wide range of compatible form factors and capacities.

Type
Series: SSD 860 EVO
Usage Application: Client PCs
Interface: SATA 6 Gb/s Interface, compatible with SATA 3 Gb/s and SATA 1.5 Gb/s interface Storage
Capacity: 500 GB Features
Sequential Read Speed: Up to 550 MB/s
Sequential Write Speed: Up to 520 MB/s
Random Read Speed: Random Read (4KB, QD32): Up to 98,000 IOPS Random Read Random Read (4KB, QD1): Up to 10,000 IOPS Random Read
Random Write Speed: Random Write (4KB, QD32): Up to 90,000 IOPS Random Write Random Write (4KB, QD1): Up to 42,000 IOPS
Controller: Samsung MJX Controller
NAND Flash: Samsung V-NAND 3bit MLC
Cache Memory: 512MB LPDDR4
Trim Support: Yes
AES Encryption: AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)
S.M.A.R.T. Support: Yes
GC (Garbage Collection): Auto Garbage Collection Algorithm
WWN Support: World Wide Name supported
Device Sleep Mode Support: Yes General
Power Consumption (W): Active Read/Write: Max. 4.0 W (4TB) / Avg. 3.0 W (4TB)
Idle: Max. 0.5 W (4TB)
Device Sleep: 2 mW (4TB)
Reliability (MTBF): 1.5 Million Hours Reliability (MTBF) Environmental Specs
Operating Temperature: 0 - 70 ^oC Operating Temperature
Shock: 1,500G and 0.5ms (Half sine) Form Factor
Product: 2.5" SATA III Software
Management SW: Magician Software for SSD management Item Dimension (L"xW"xH")
NA

Weight
0.14 lbs

Warranty Information
5 years
