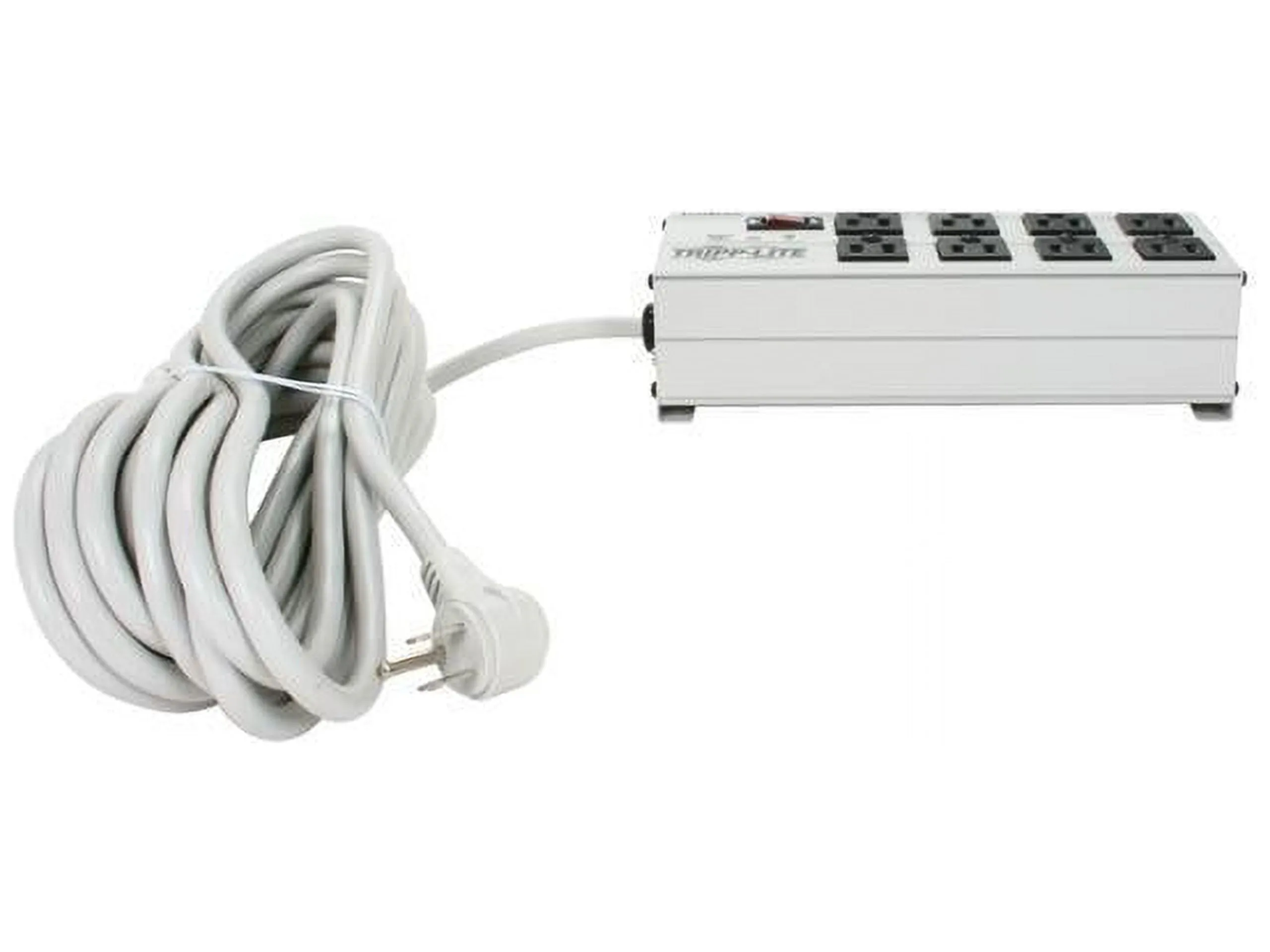

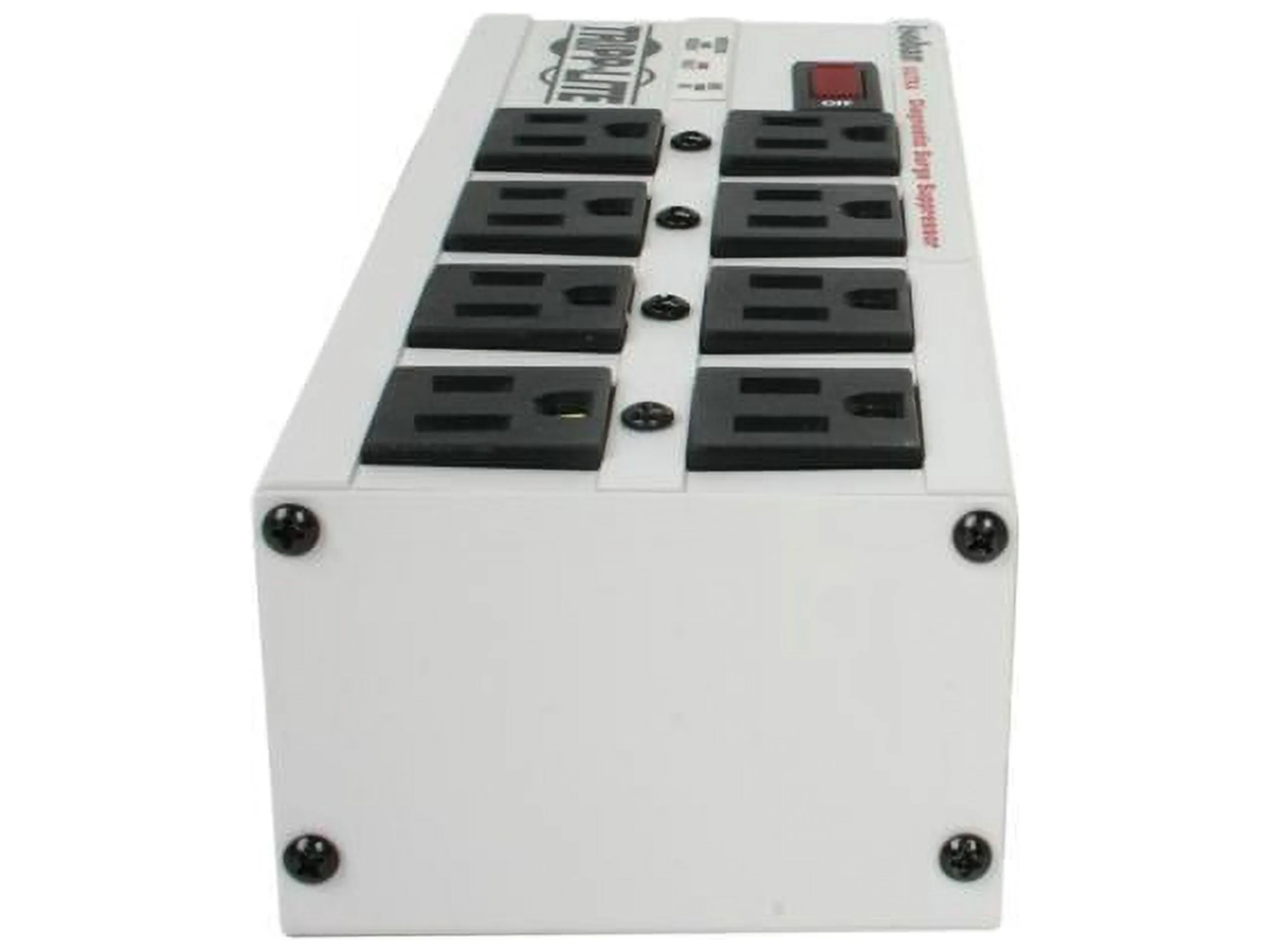

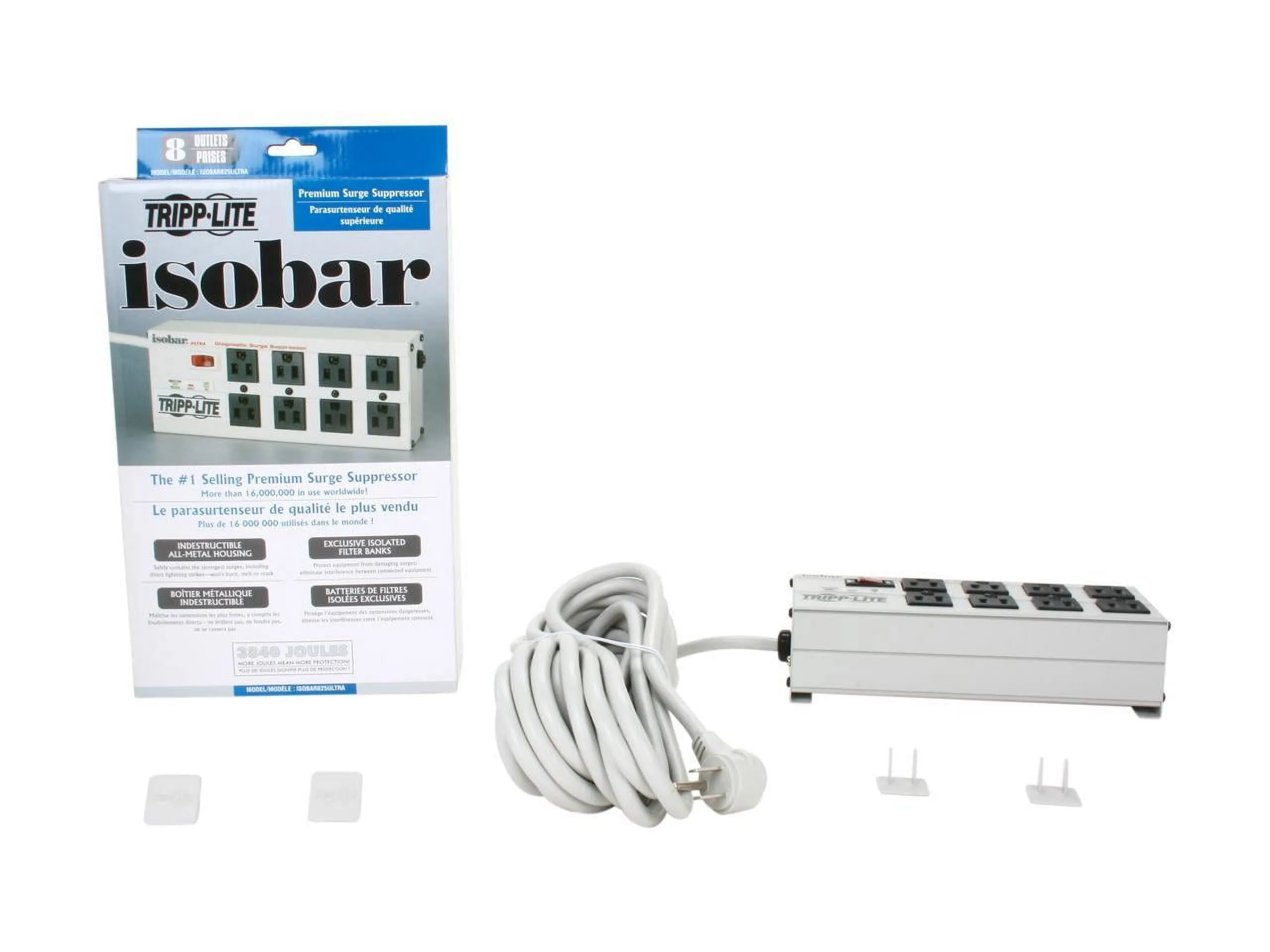

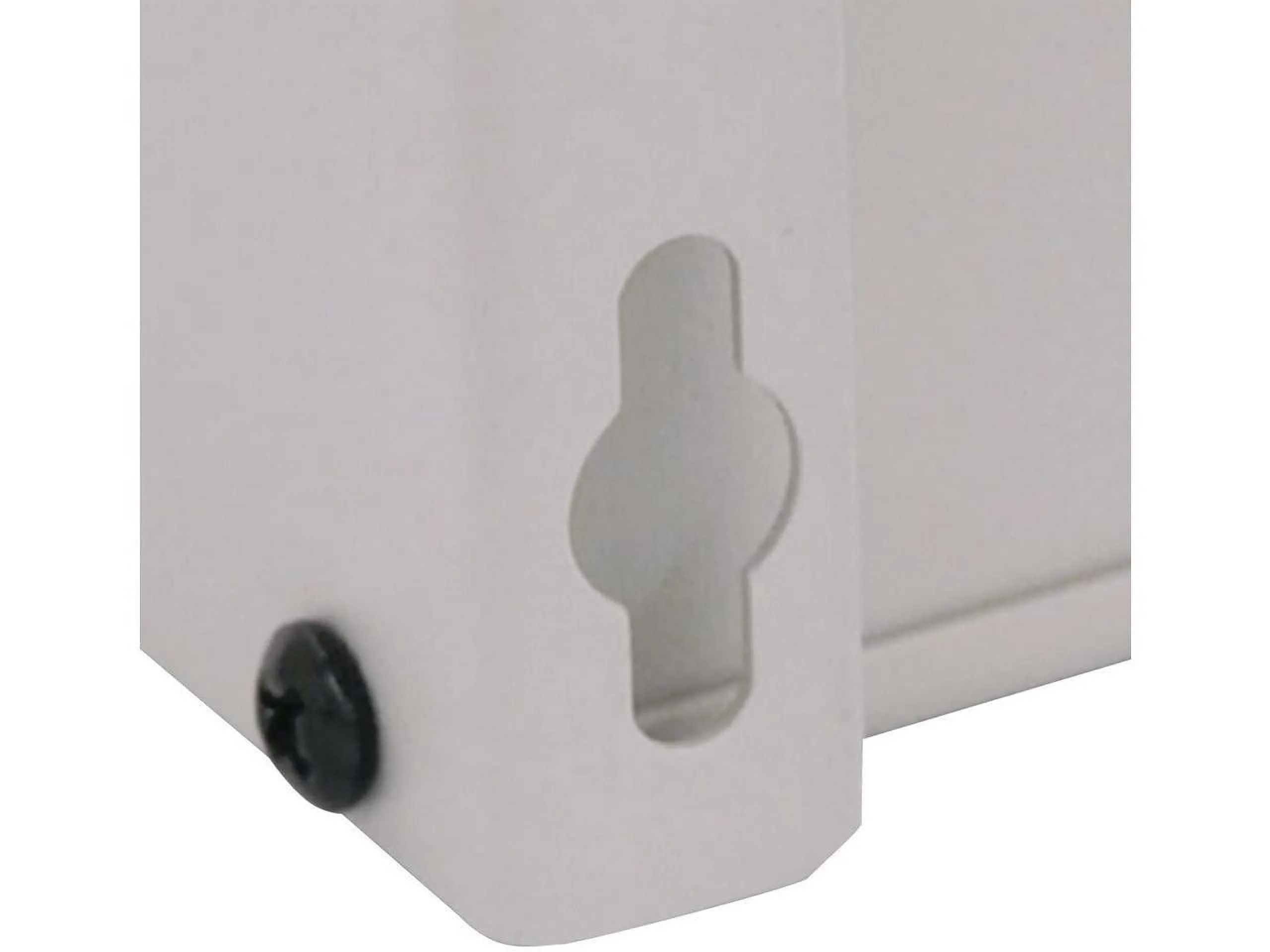

Loaded with a generous combination of high-quality components, near indestructible all-metal case and unique noise filtration system, this surge suppressor offers a high level of protection in a multi-outlet strip. Robust surge suppression circuits with sine-wave tracking offer extreme levels of protection against the heaviest surge conditions. Unique protection system combines large toroidal chokes, ferrite rod-core inductors, HF/VHF capacitors and multiple layers of metal oxide varistors into exclusive, isolated filter banks that remove EMI/RFI interference. Surge suppression rated at 3840 joules/97,000 amps offers network-grade protection. Widely spaced NEMA 5-15 outlets accommodate up to four large transformer plugs without blocking outlets. Diagnostic LEDs confirm power availability, line fault and protection status. Surge suppressor includes 25' AC line cord with space-saving angled input plug, keyhole mounting tabs and a set of four child-safety covers.Tripp Lite Isobar 8-outlet Surge Suppressor

Frequency Compatibility
50 / 60 Hz

Output Receptacles
(8) 5-15R

Output (Watts)
1440

Circuit Breaker (amps)
12

Transformer Accommodation
Supports up to 4 large transformer plug accessories without covering remaining outlets

USB Charging
No

Nominal Input Voltage(s) Supported
120V AC

Recommended Electrical Service
120V (110-125V)

Input Connection Type
NEMA 5-15P input plug

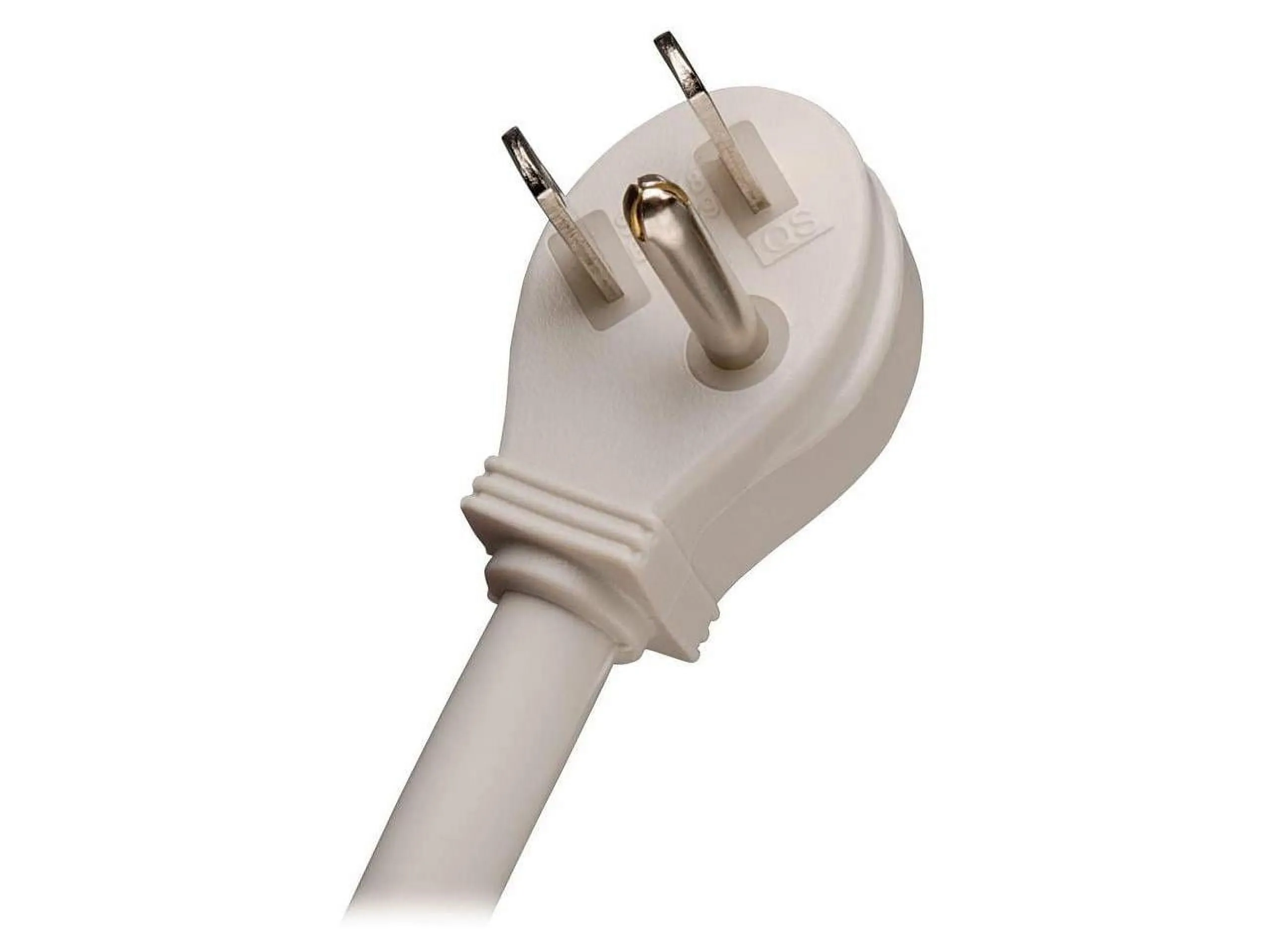

Input Plug Features
Space-saving right angle input plug

Input Cord Length (m)
7.62

Voltage Compatibility (VAC)
120

Maximum Surge Amps
150000

Switches
Combination AC circuit breaker and two position red illuminated on/off power switch

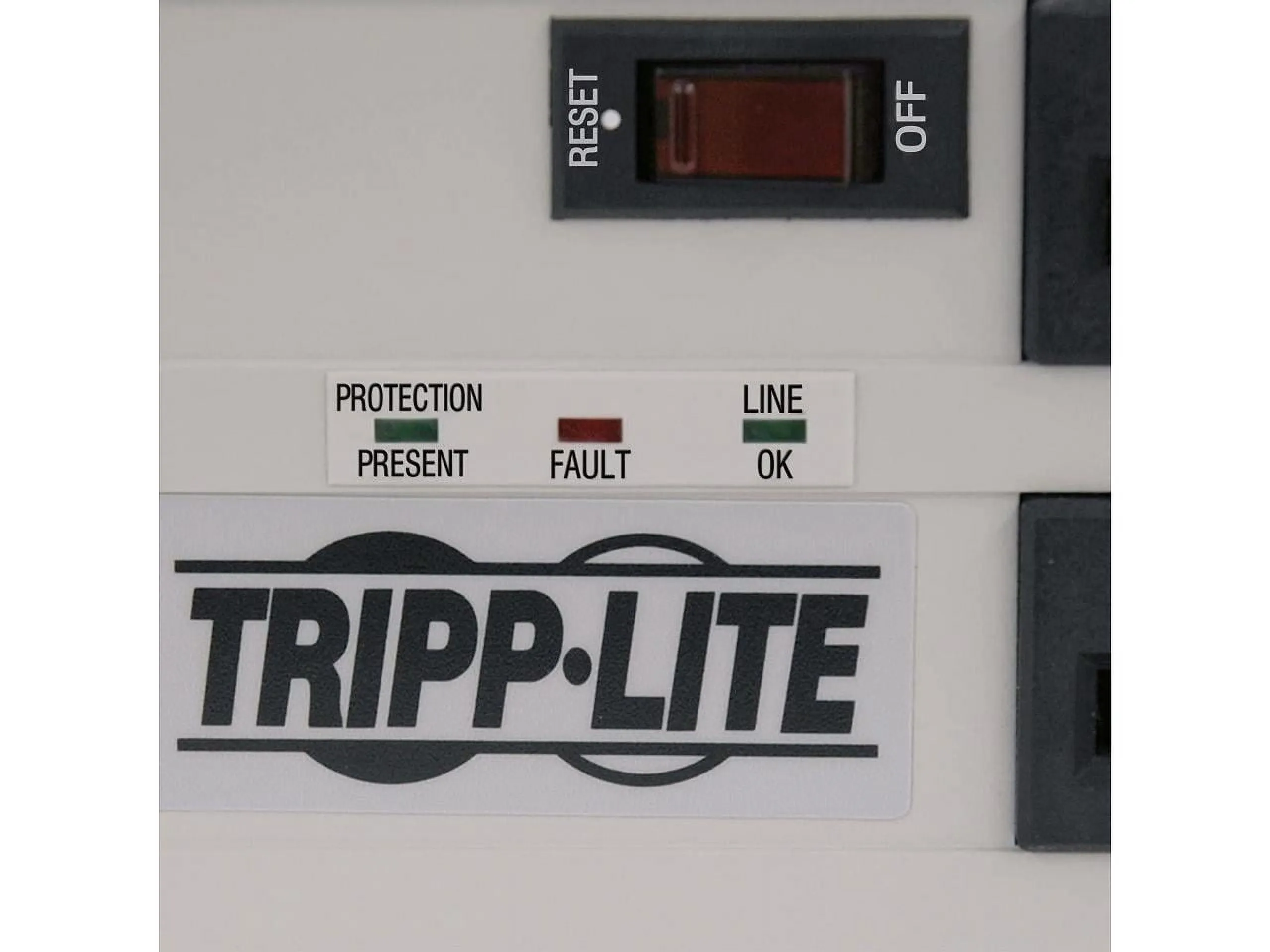

Diagnostic LED Details
PROTECTION PRESENT (green), LINE FAULT (red) and LINE OK (green)

AC Suppression Joule Rating
3840

AC Suppression Response Time
NM 0 ns. CM <1 ns

Protection Modes
Includes full normal mode (H-N) and common mode (N-G / H-G) line surge suppression

Clamping Voltage (RMS)
140

AC Suppression Surge Current Rating
97,000 amps (36,000 NM / 61,000 CM)

AC Suppression Components Used
Metal oxide varistors, toroidal balanced chokes, ferrite rod-core inductors and VHF capacitors.

Safe Thermal Fusing
Prevents unsafe conditions during extreme extended over-voltages and catastrophic occurrences

UL1449 Let Through Rating
330V

IEEE587 Cat. A Ringwave Let-Through
Less than 35 volts

EMI / RFI Filtering
40-80 dB

Isolated Filter Banks
Unique isolated filter bank design offers additional filtering between each duplex pair of outlets on the strip to prevent electrical noise interference between connected loads. Includes 4 filter banks.

Immunity
Conforms to IEE 587 / ANSI C62.41

Item Dimension (L"xW"xH")
9 x 3.5 x 2.5

weight
3.30 lb

Warranty Infotmation
Lifetime
