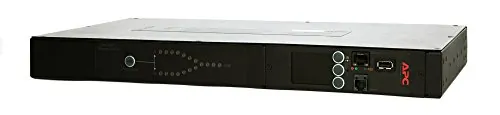

APC Rack Automatic Transfer Switches (rack ATS) provide reliable, redundant rack mount power to single-corded equipment. The rack ATS has dual input power cords supplying power to the connected load. If the primary power source becomes unavailable, the rack ATS will seamlessly source power from the secondary source without interrupting critical loads. The Rack ATS has built-in network connectivity, which allows for remote management via Web, SNMP, or Telnet interfaces.

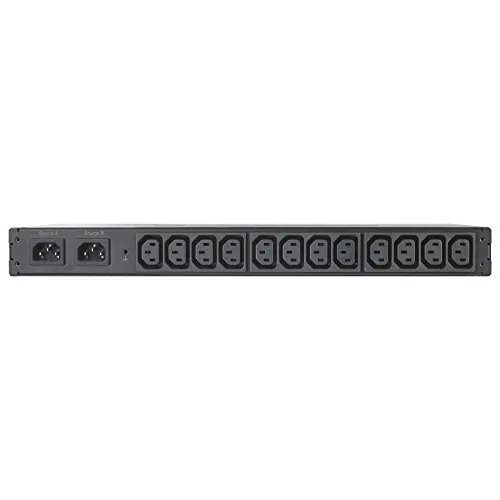

Includes Mounting Hardware , Rack Mounting brackets , Serial configuration cableOutput Nominal Output Voltage 230V Maximum Total Current Draw per Phase 10 A Output Connections (12) IEC 320 C13 (Battery Backup) Always on Outlets 0 Overload Protection NoInput Nominal Input Voltage 230V Input Frequency 50/60 Hz Input Connections IEC-320 C14 Number of Power Cords 0 Maximum Line Current per phase 10 A Maximum Input Current per phase 10 A Load Capacity 0 VAPhysical Net Weight 3.93 kg Maximum Height 44.0 mm Maximum Width 432.0 mm Maximum Depth 236.0 mmColor BlackEnvironmental Operating Environment -5 - 45 °C Operating Relative Humidity 5 - 95 % Operating Elevation 0-3000 meters Storage Temperature -25 - 65 °C Storage Relative Humidity 5 - 95 % Storage Elevation 0-15000 metersApprovals EN 55022 Class A , FCC Part 15 Class A
