Tripp Lite Surge Protector Power Strip 120V 8 Outlet RJ11 RJ45 Coax 10' Crd 3240 Joule - 8 x NEMA 5-15R - 1800 VA - 3240 J - 120 V AC Input - 120 V AC Output - Fax/Modem/Phone, Network, Cable TV/Satellite
  • Cost: $69.28
  • Quantity: 39
  • Free Shipping
  • Views:
  • Sold and Shipped By: Aztek Computers

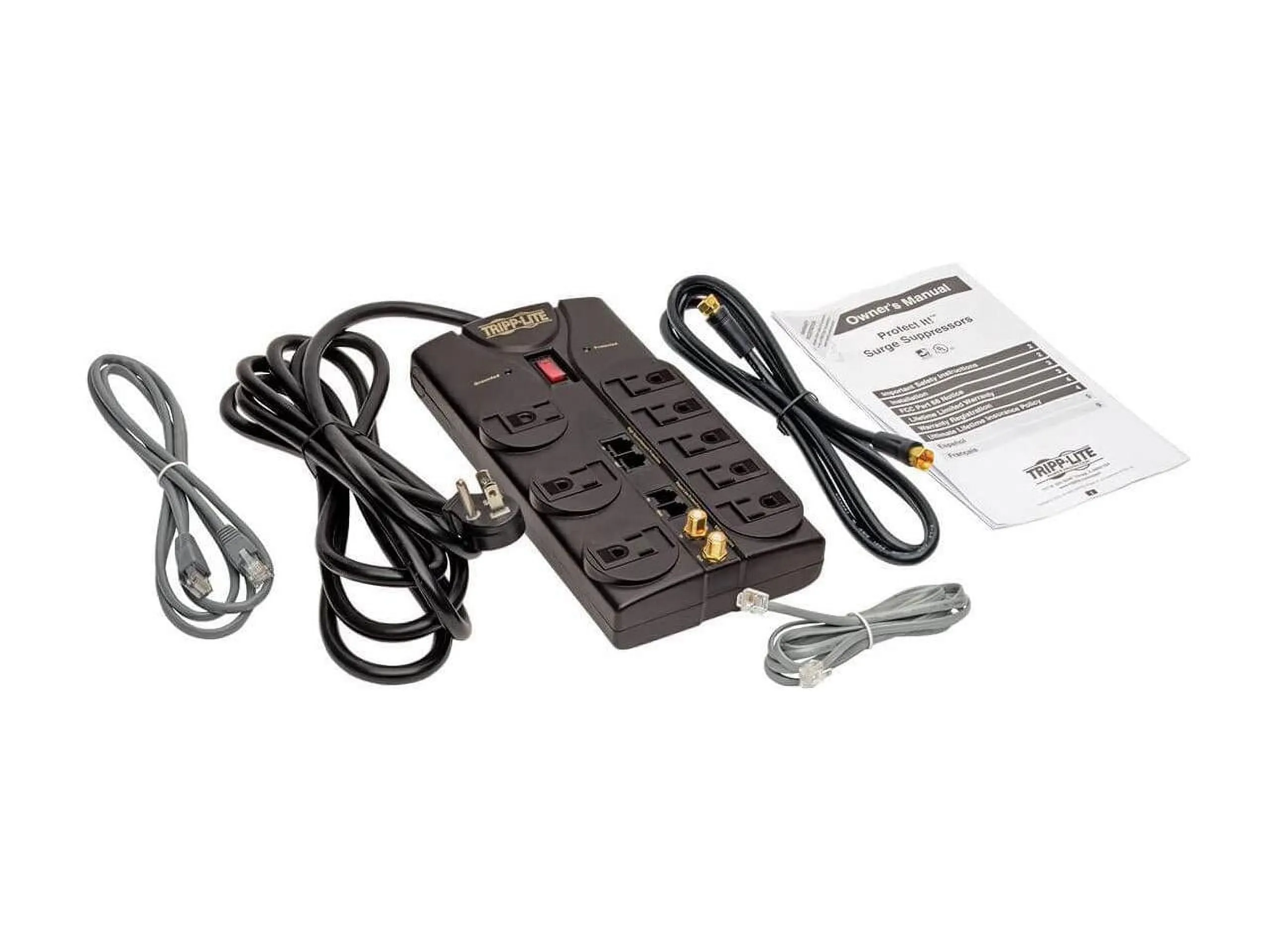

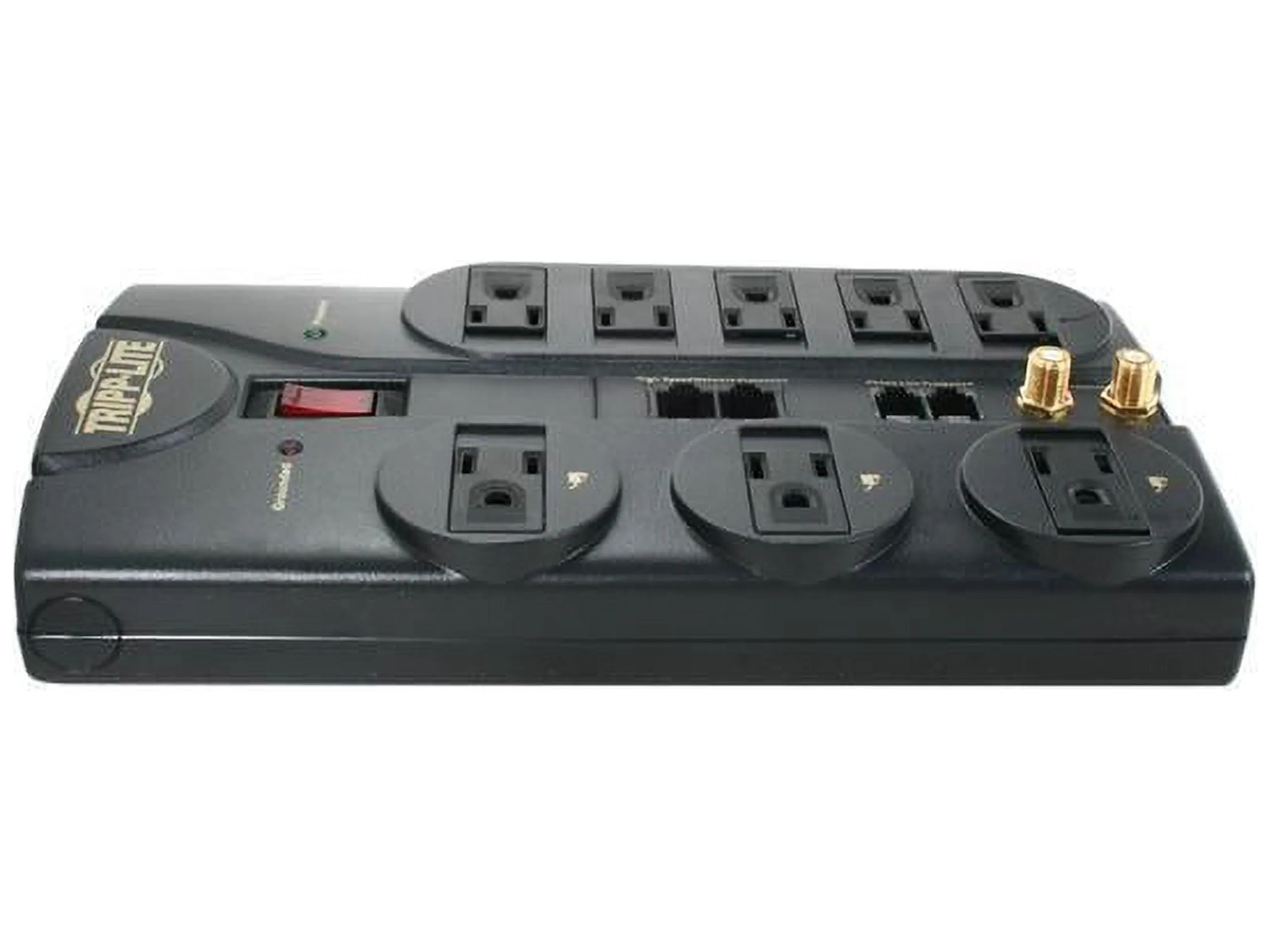

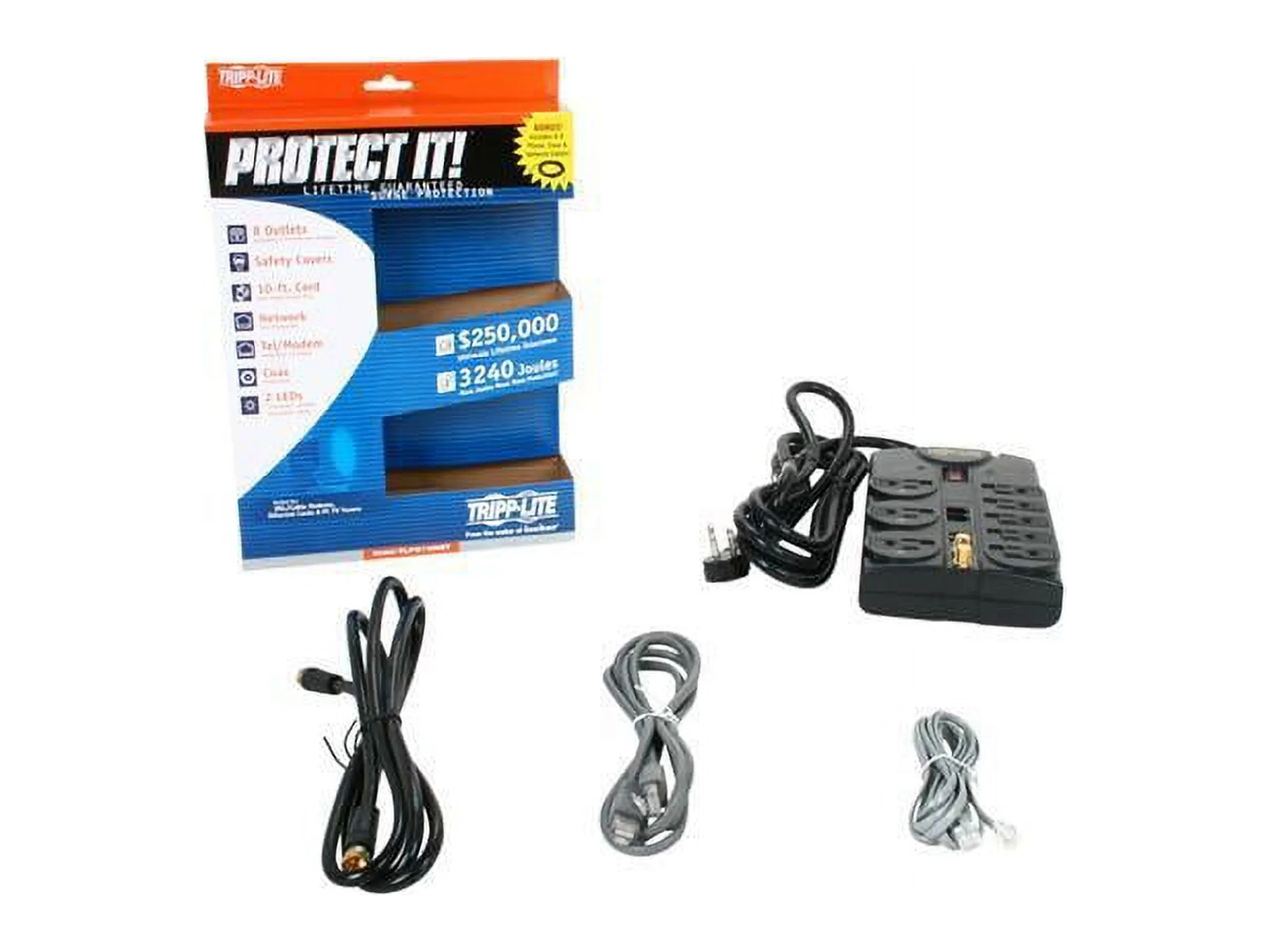

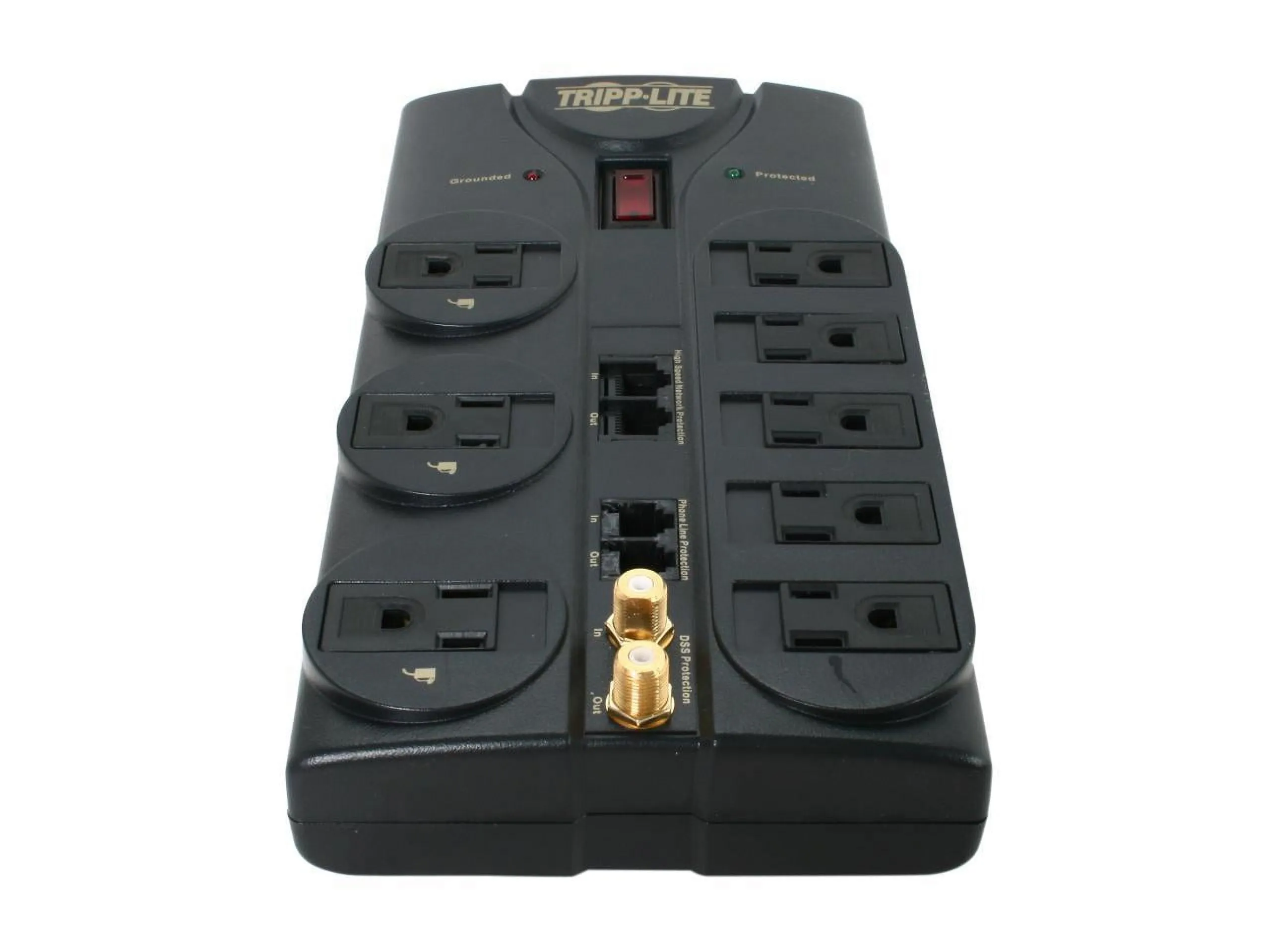

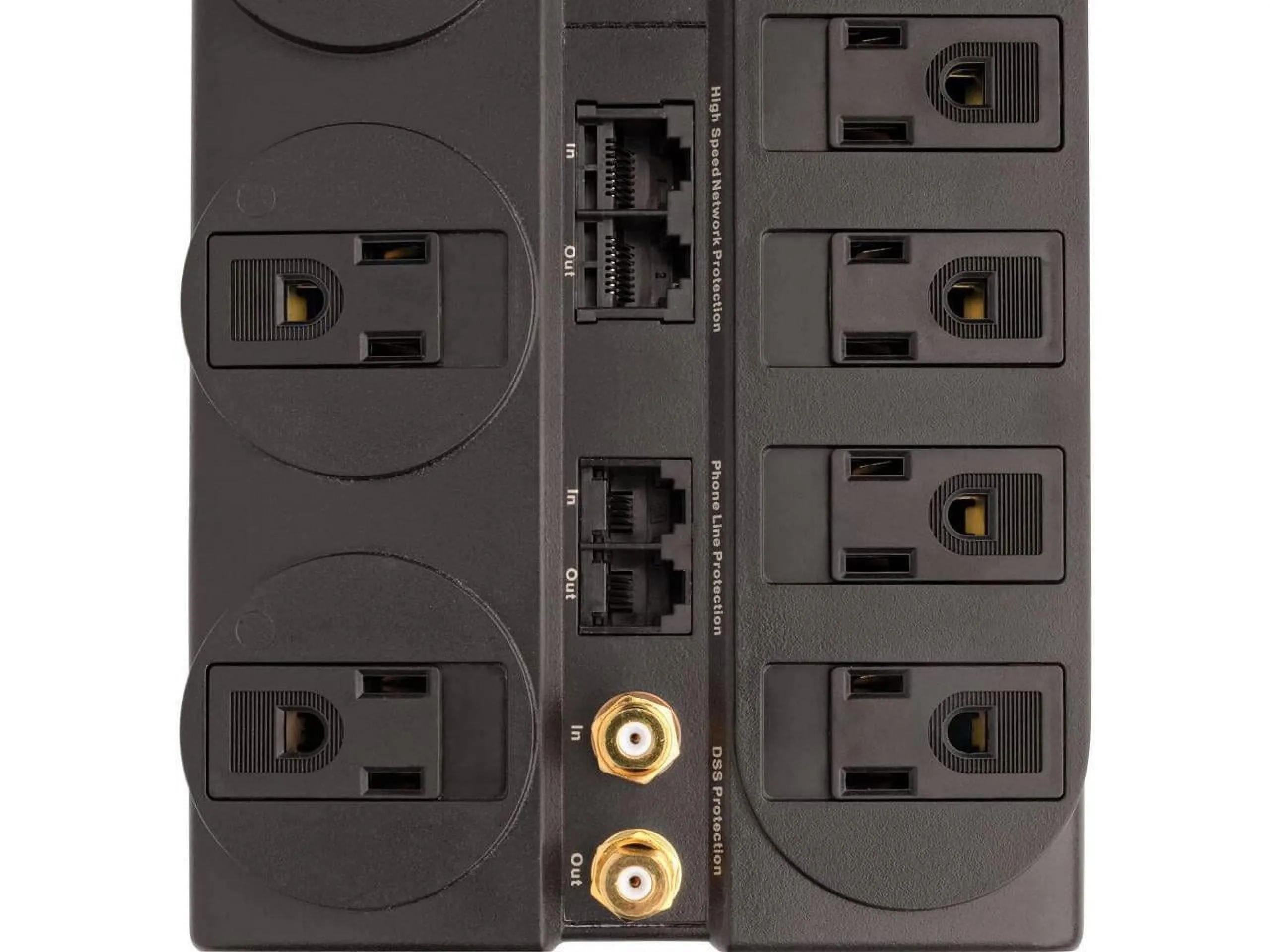

The TLP810NET surge suppressor has eight outlets, a 10-foot (3.1-meter) cord with a space-saving right-angle plug, and diagnostic LEDs. The unit has a surge suppression rating of 3240 joules to handle the strongest surges. Built-in RJ11, RJ45, and Type F coax jacks prevent surges from damaging your modem/fax/100Bt/cable/satellite equipment. Coaxial jacks provide digital broadband quality and can handle 2.2 GHz bandwidth.



  • UPC Code: 037332095329
  • Nominal Input Voltage(s) Supported: 120V AC
  • Recommended Electrical Service: 120V (110-125V)

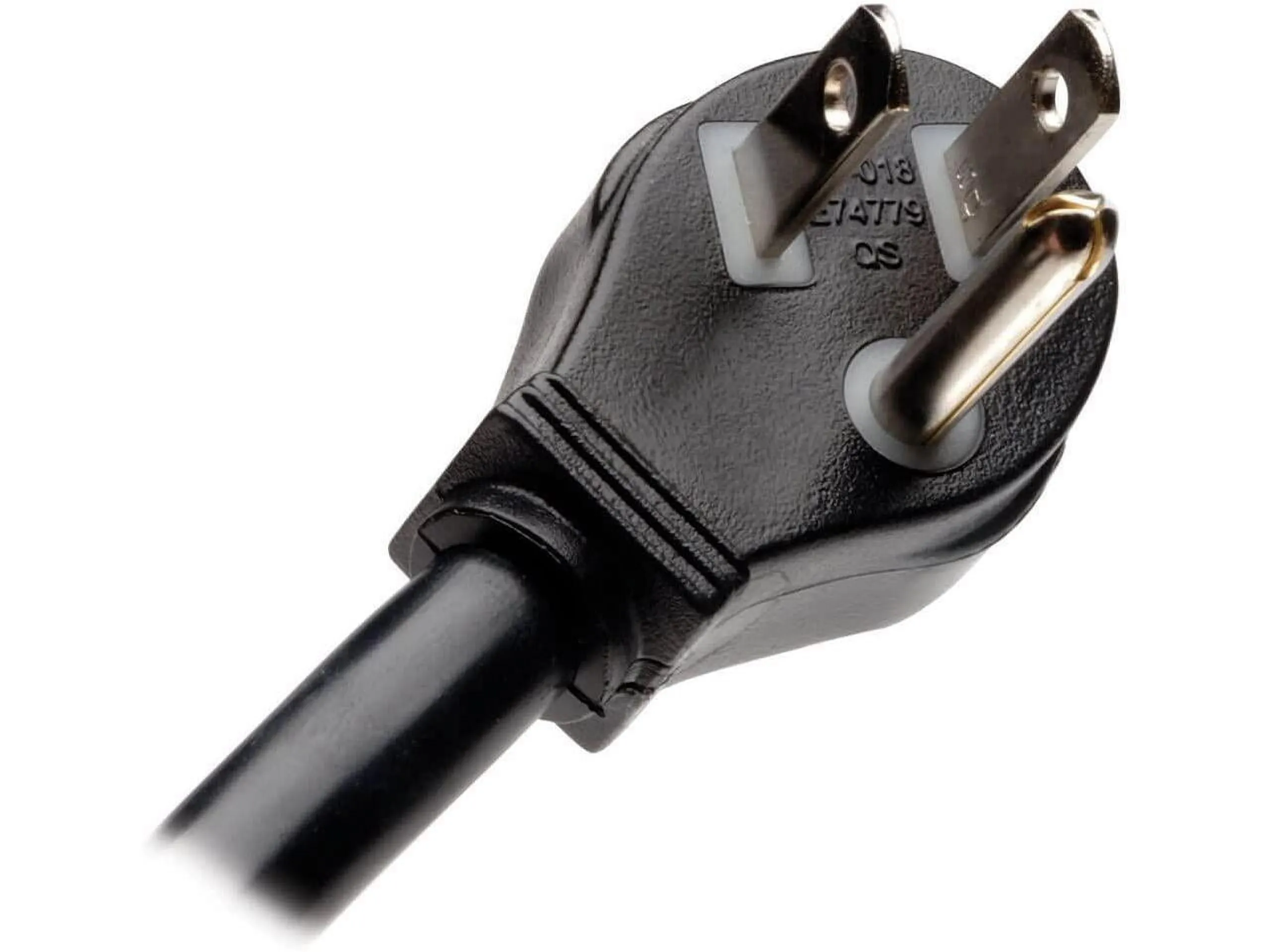

  • Input Plug Features: Right Angle (36D)
  • Input Cord Gauge Type: 14 gauge; SJT
  • Input Cord Gauge (AWG): 14
  • Voltage Compatibility (VAC): 120
  • Maximum Surge Amps: 216000
  • Input Plug Type: NEMA 5-15P
  • Input Cord Details: SJT

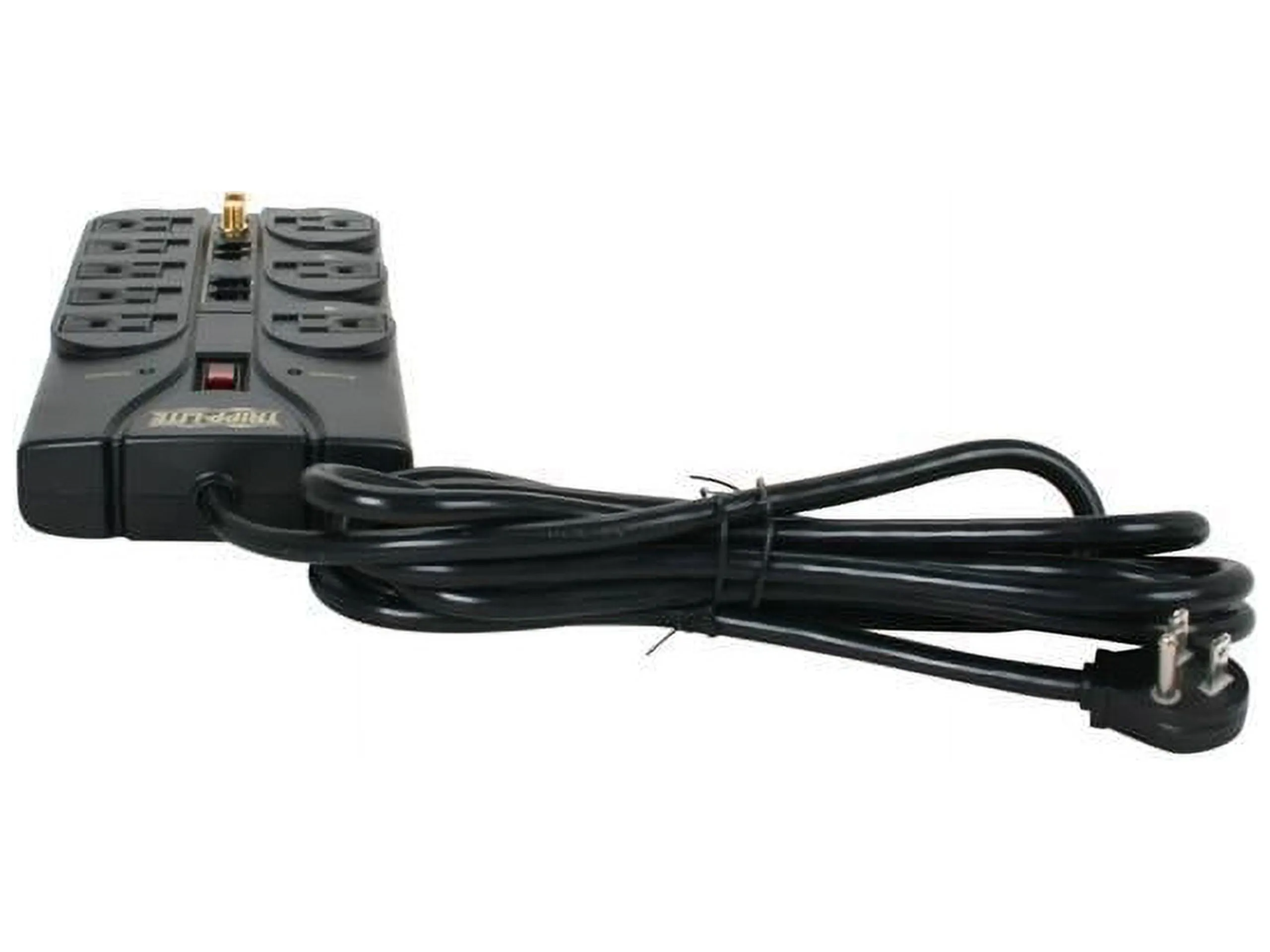

  • Input Cord Length (ft.): 10
  • Right-Angle Plug: Yes
  • Frequency Compatibility: 50 / 60 Hz
  • Output Receptacles: (8) 5-15R
  • Circuit Breaker (amps): 15
  • Transformer Accommodation: (6) Yes
  • Outlet Orientation: Single row of 5, plus a second row of 3 for transformer accommodation
  • Outlet Safety Covers Detail: Includes built-in sliding outlet safety covers
  • Diagnostic LED(s): Yes
  • Switches: Combination AC circuit breaker and 2-position red illuminated on/off power switch
  • Audible Alarm: Audible alarm sounds to indicate damage to suppression components
  • Diagnostic LED Details: Built-in LEDs confirm suppressor "protection present" (green) and "grounded" (red) status
  • AC Suppression Joule Rating: 3240
  • AC Suppression Response Time: < 1 ns
  • Protection Modes: Includes full normal mode (H-N) and common mode (N-G / H-G) line suppression
  • UL1449 Let Through Rating: 330/400/400
  • EMI / RFI Filtering: Up to 40 dB
  • Automatic Shut-Off: Yes
  • Telephone/DSL Protection Details: 2 line
  • Cable (Coax) Protection: Yes
  • Cable (Coax) Protection Details: 1 line (2.2 GHz Bandwidth)
  • Network (Ethernet) Protection: Yes
  • Telephone/DSL Protection: Yes
  • Material of Construction: Plastic
  • Power Cord Color: Gray
  • Housing Color: Gray

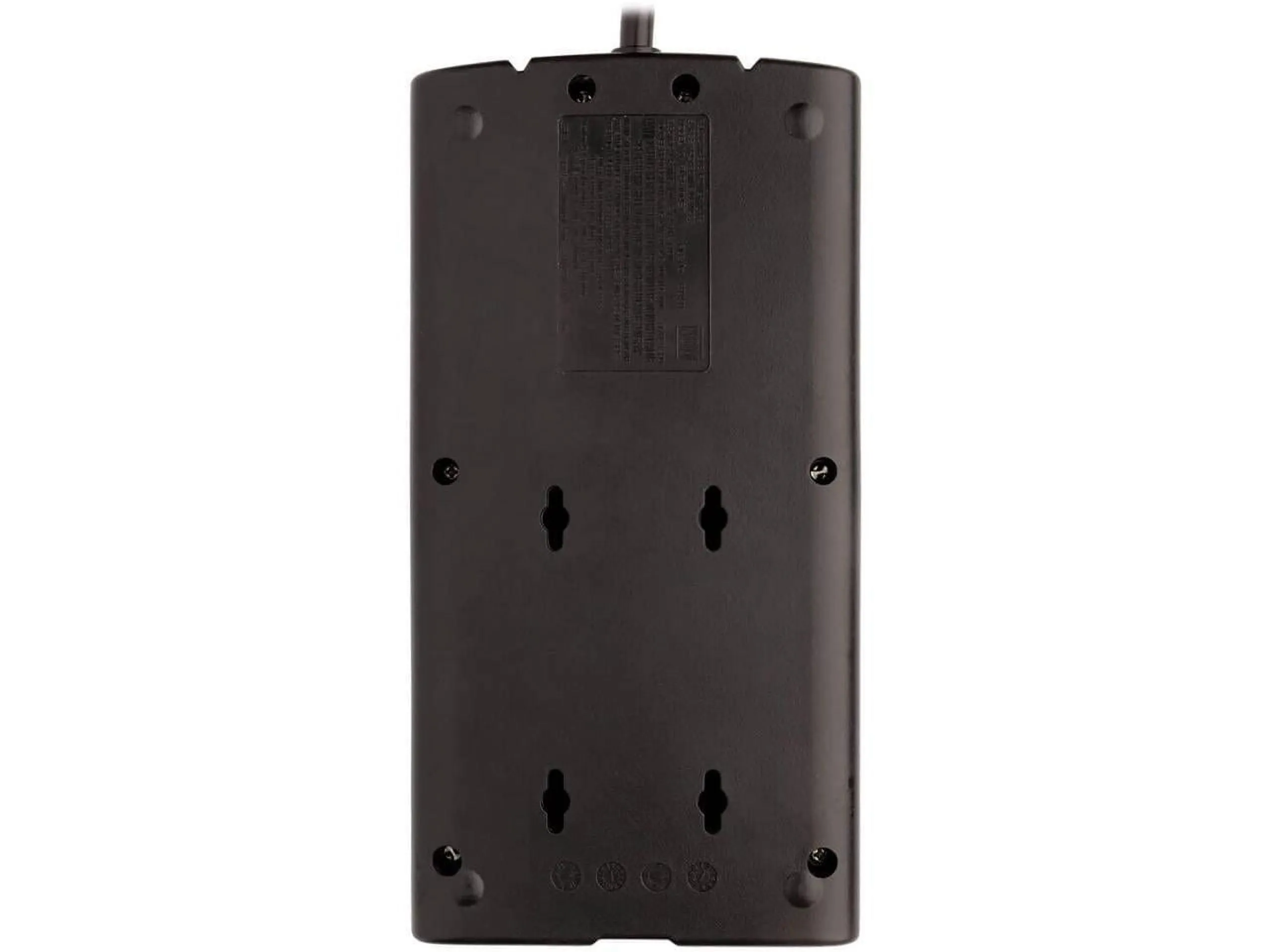

  • Mounting Holes or Slots: Yes
  • Slot or Hole Mount Measurement (Center to Center): Distance between horizontal tabs = 75 mm; Distance between vertical tabs = 41.6 mm
  • Outlets Measurement (Center to Center): Distance between standard outlets = 28.5mm; Distance between transformer outlets = 57mm
  • Receptacle Color: Gray
  • Shipping Dimensions (hwd / in.): 11.41 x 8.66 x 2.04
  • Shipping Weight (lbs.): 3.00
  • Unit Dimensions (hwd / in.): 4.860 x 9.550 x 1.510
  • Unit Weight (lbs.): 2.02
  • Input Cord Color: White
  • Network Compatibility: 100 Mbps (Fast Ethernet)
  • Product Certifications: CAN/CSA-C22.2 No. 269.3 (Canada); CAN/CSA-C22.2 No. 308 (Canada); cUL Listed; NOM (Mexico); UL 1449; UL 1363; UL Listed
  • Product Compliance: FCC Part 68; RoHS
  • Product Warranty Period (Worldwide): Lifetime limited warranty
  • Connected Equipment Insurance (U.S., Canada & Puerto Rico): $250,000 Ultimate Lifetime Insurance
